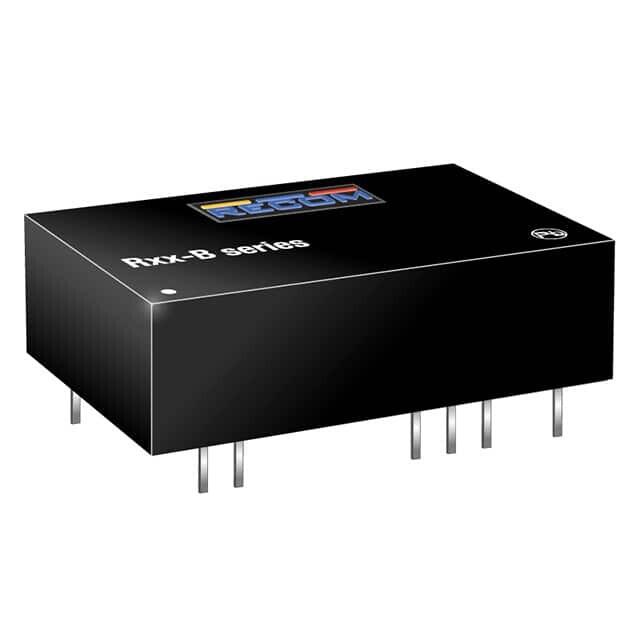

| R05-100B - RECOM POWER - DC DC CONVERTER 41-120V 3W | |
| Packaging | Tube |
| Features | SCP |
| Package / Case | 24-DIP Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.37" H (31.8mm x 20.3mm x 9.4mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 6V |
| Approval Agency | CE, EAC |
| Efficiency | 77% |
| Current - Output (Max) | 50mA |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 41 ~ 120V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
