| Bağlantı 1 - (CELLULAR / 4G LTE) | |||
| Standartlar | 2G,3G and 4G | ||
| Band (MHz) | 700/850/900 | 1700/1800/1900/2100 | 2600 |
| Frekans (MHz) | 698-960 | 1710-2170 | 1710-2170 |
| Return Loss (dB) | ~-7.1 | ~-12.2 | ~-18.5 |
| VSWR | ~2.8:1 | ~1.7:1 | ~1.3:1 |
| Efficiency (%) | ~35 | ~51 | ~49 |
| Peak Gain (dBi) | ~-0.8 | ~-0.8 | ~3.4 |
| Average Gain (dB) | ~-4.6 | ~-2.9 | ~-3.1 |
| Impendance (Ohm) | 50 | ||
| Polarisation | Linear | ||
| Radiation Pattern | Omni-Directional | ||
| Max. Input Power (W) | 25 | ||
| Connector Type | SMA-Male Standard (Other Connectors Available) | ||
| Cable Length | 300 cm Standard (Any Cable Length Available) | ||
| Cable Type | D302 Standard (Other Cables Available) | ||
| Bağlantı 2 - (CELLULAR / LTE Antenna) | |||
| Standartlar | 2G,3G and 4G | ||
| Band (MHz) | 700/850/900 | 1700/1800/1900/2100 | 2600 |
| Frekans (MHz) | 698-960 | 1710-2170 | 2500-2700 |
| Return Loss (dB) | ~-6.8 | ~-15.8 | ~-10.8 |
| VSWR | ~2.9:1 | ~1.4:1 | ~1.8:1 |
| Efficiency (%) | ~34.2 | ~41.1 | ~36.7 |
| Peak Gain (dBi) | ~-1.0 | ~1.7 | ~3.2 |
| Average Gain (dB) | ~-4.7 | ~-3.9 | ~-4.4 |
| Impendance (Ohm) | 50 | ||
| Polarisation | Linear | ||
| Radiation Pattern | Omni-Directional | ||
| Max. Input Power (W) | 25 | ||
| Connector Type | SMA-Male Standard (Other Connectors Available) | ||
| Cable Length | 300 cm Standard (Any Cable Length Available) | ||
| Cable Type | D302 Standard (Other Cables Available) | ||
| Bağlantı 3 - (GPS / GLONASS Anten) | |||
| Standartlar | GPS/QZSS/Galileo | GLONASS | |
| Band (MHz) | 1575 | 1602 | |
| Frekans (MHz) | 1575.42 | 1598-1606 | |
| Patch Size (mm) | 25 x 25 x 4 | ||
| Return Loss (dB) | <=-15.0 dB | ||
| VSWR | <=1.4:1 dB | ||
| Impendance (Ohm) | 50 | ||
| Polarisation | RHCP | ||
| Radiation Pattern | Hemispherical | ||
| Saw Filter | Pre-filter | ||
| Active Gain (dB) | 28 @ 2.7 V | ||
| Noise Figure (dB) | 1.5 Typ | ||
| Voltage (V) | 1.5 – 3.6 | ||
| Current (mA) | 9 Typ | ||
| Power Consumption (mW) | 24.3 Typ | ||
| ESD Protection (kV) | 2kV | ||
| Connector Type | SMA-Male Standard (Other Connectors Available) | ||
| Cable Length | 300 cm Standard (Any Cable Length Available) | ||
| Cable Type | LMR100 Standard (Other Cables Available) | ||
| 2J6A41BGFa - Mekanik ve Çevre Spesifikasyonları | |
| Mounting Type | Screw Mount |
| Dimensions (mm) | Ø 77.3 x 65.5 |
| Max. Tighten Torque (Nm) | 6 Nm |
| Radome Type | ASA |
| Radome Color | Black or White |
| Antenna Base | Zamak |
| Gasket | TPE |
| Operating Temperature (C) | -40 to +85 |
| Storage Temperature (C) | -40 to +85 |
| Substance Compliance | RoHS |
| Certificates | IP67, IK09, IP69K |

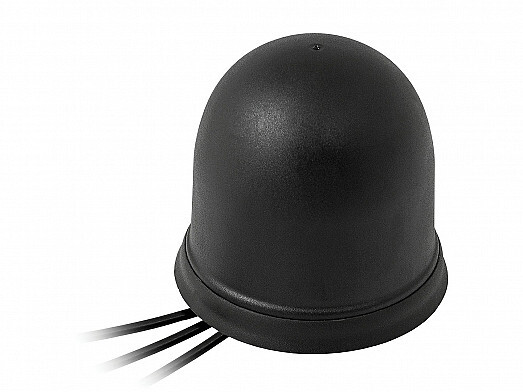

Tanım: 2J6A41BGFa-300LL100-C20GRST_C20GRST_C27GBST
Cable 1 and 2: CELLULAR / LTE
- 698-960 MHz
- 1710-2170 MHz
- 2500-2700 MHz
Cable 3: GPS/GLONASS/QZSS/Galileo
- 1575-1606 MHz

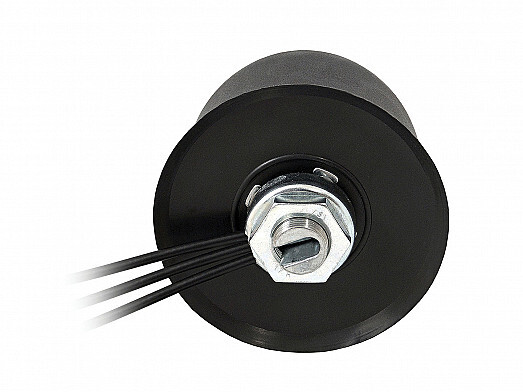

Screw Mount
Anti-Rotation Mechanism
Ground Plane Dependent
Customizable Cable and Connector
Dimensions: Ø 77.3 x 65.5 mm
Certificates: IP67, IK09, IP69K
