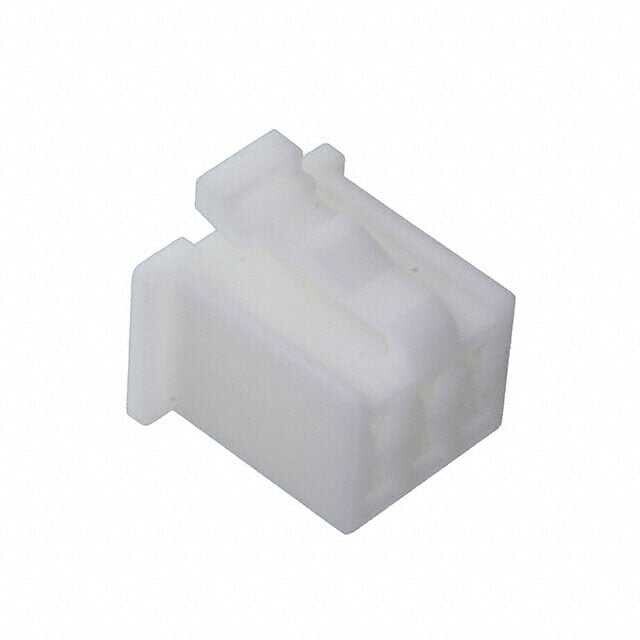

MDF6-6DS-3.5C
6 Rectangular Connectors - Housings Socket White 0.138" (3.50mm)
| MDF6-6DS-3.5C - HIROSE ELECTRIC CO LTD - CONN SOCKET HSG 6POS 3.50MM | |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Number of Positions | 6 |
| Pitch | 0.138" (3.50mm) |
| Number of Rows | 2 |
| Row Spacing | 0.197" (5.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | White |
| Features | - |
| Insulation Material | Polyamide (PA), Nylon |
| Operating Temperature | -30°C ~ 85°C |
