ESP-C3-13

ESP-C3-PRODUCT FEATURES:

ESP-C3-13 is a Wi-Fi module developed by Ai-Thinker. This module core processorESP32-C3 is a Wi-Fi+ BLE combination of system-level chips (SoC), designed for variousapplications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc.

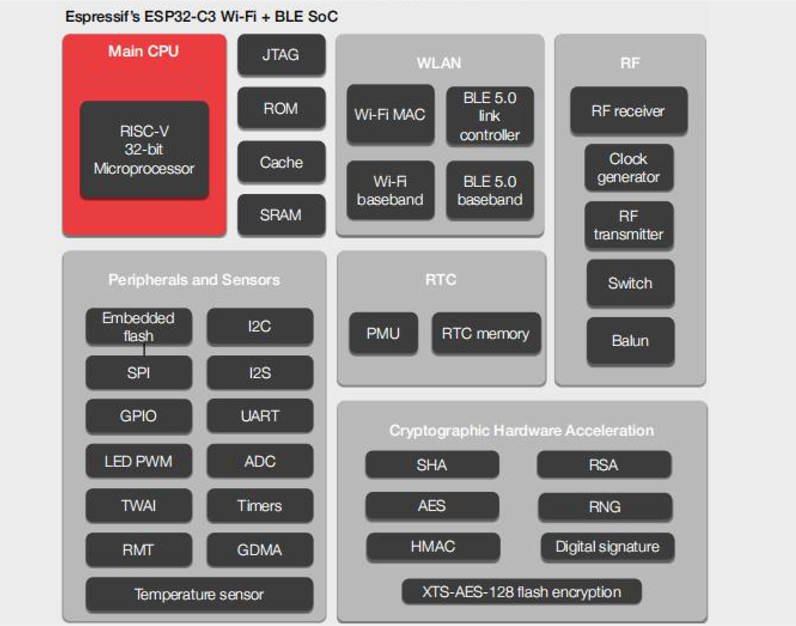

ESP32-C3 with industry-leading low power and RF performance, supportingWi-Fi IEEE802.11b/g/n agreements and BLE 5.0.ESP32-C3 chip is equipped with a RISC-V32-bit single-core processor, operating frequency up to 160 MHz. The chip is support tohavesecondary development without using other microcontrollers or processors. The chiphasabuilt-in 400 KB SRAM，384 KB ROM，8KB RTC SRAM. The chip also support external Flashwhile it built-in 4Mbit Flash. ESP32-C3 chip supports a variety of low-power consumptionworking states, which can meet the power consumption requirements of various applicationscenarios. The chip's unique features such as fine clock gating function, dynamic voltageclockfrequency adjustment function, and RF output power adjustable function can achieve thebest balance between communication distance, communication speed and power consumption.

ESP-C3-13 module provides a wealth of peripheral interfaces, including UART，PWM，SPI，I2S，I2C，ADC, temperature sensor and there are 15 GPIOs.

ESP-C3-13 has a variety of unique hardware safety mechanisms.The hardware encryptionaccelerator supports AES、SHA and RSA algorithm.Among them,RNG、HMACandDigital Signature module provide more security features.Other security features includeflashencryption and se-cure boot signature verification, etc. The perfect security mechanismenablesthe chip to be perfectly applied to various encryption products.

ESP-C3-13 support low-power Bluetooth：Bluetooth5，Bluetooth mesh. Bluetoothratesupport：125Kbps，500Kbps，1Mbps,2Mbps. Support broadcast extension, multi-broadcasting, channel selection

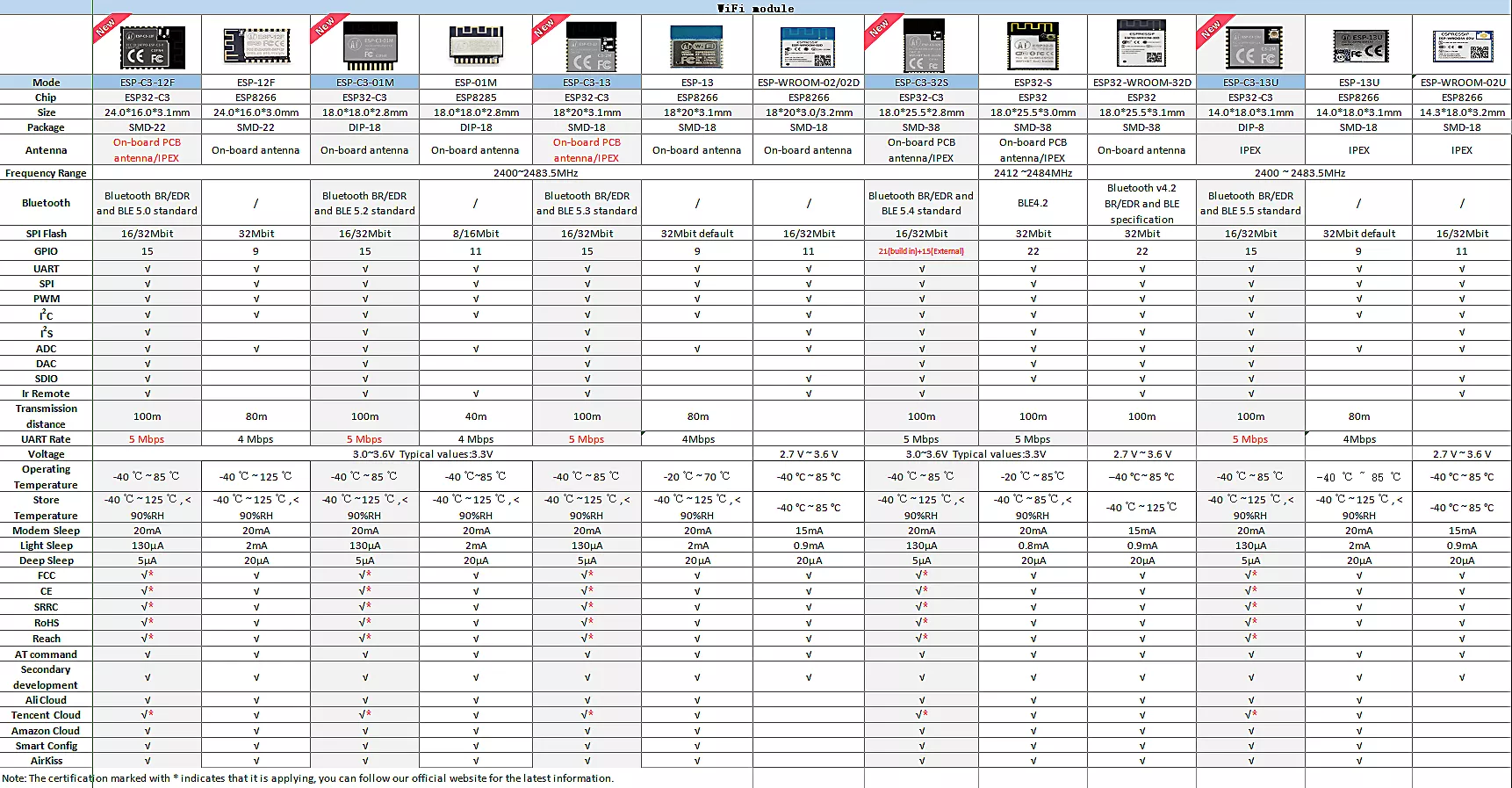

CLICK TO SEE ALL ESP Wi-Fi MODULE FAMILY

ESP-C3-13 CHARACTERISTIC

• Complete Wi-Fi 802.11b/g/n，1T1R mode data rate up to 150Mbps
• Support BLE5.0 and rate support：125Kbps，500Kbps，1Mbps,2Mbps
• 32-bit RISC-V single-core processor, supports a clock frequency of up to 160MHz, with 400 KB SRAM，384 KB ROM，8KB RTC SRAM
• Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter

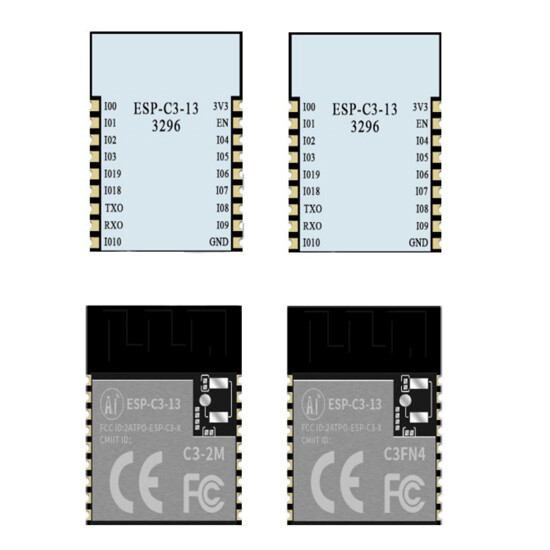

• SMD-18 package
• Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE
• Support multiple sleep modes, deep sleep electric current is less than 5uA
• UART rate up to 5Mbps
• Support STA/AP/STA+AP mode and mix mode
• Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click networkconfiguration
• Support UART port local upgrade and remote firmware upgrade (FOTA)
• General AT commands can be better understand
• Support secondary development, integrated Linux development environment

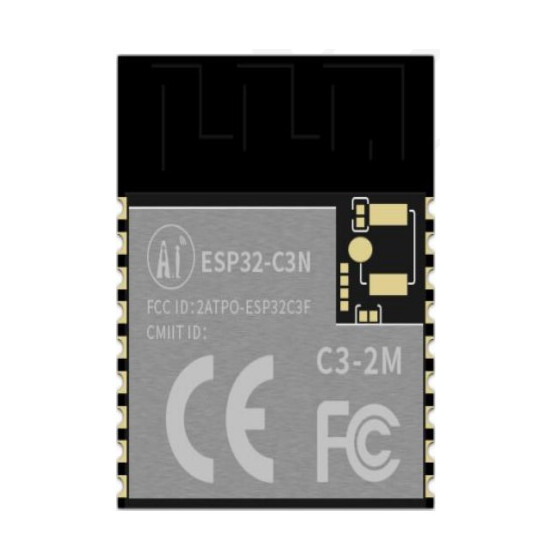

• ESP-C3N module acquiesce in using the built-in 4MByte Flash.
