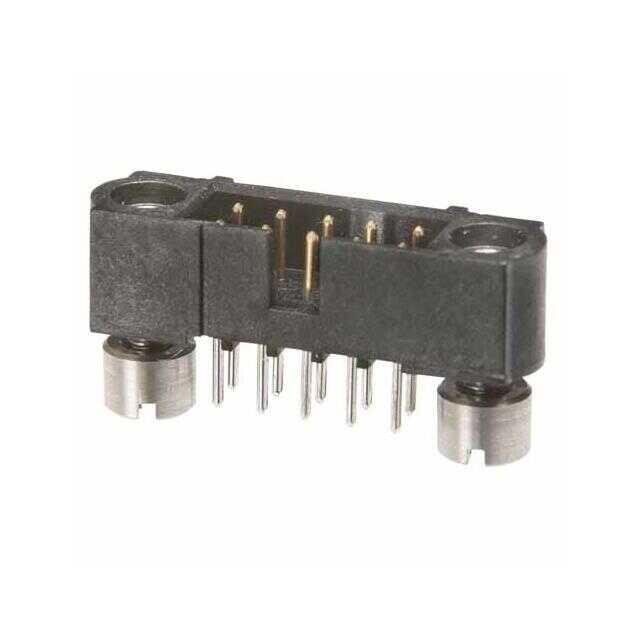

M80-5T12042M3 - HARWIN INC. - CONN HDR 2MM PCB 20POS | |
Packaging | Tube |
Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
Connector Type | Header |
Voltage Rating | 800VAC/DC |
Current Rating (Amps) | 2.2A |
Mounting Type | Through Hole |
Number of Positions | 20 |
Number of Rows | 2 |
Style | Board to Board or Cable |
Operating Temperature | -55°C ~ 125°C |
Contact Type | Male Pin |
Fastening Type | Threaded |
Number of Positions Loaded | All |
Termination | Solder |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Contact Material | Phosphor Bronze |
Insulation Color | Black |
Pitch - Mating | 0.079" (2.00mm) |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
Contact Finish - Post | Tin |
Contact Shape | Circular |
Contact Length - Post | 0.130" (3.30mm) |
Insulation Height | 0.220" (5.60mm) |
Shrouding | Shrouded - 4 Wall |
Overall Contact Length | - |
Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
Row Spacing - Mating | 0.079" (2.00mm) |
Contact Length - Mating | - |
