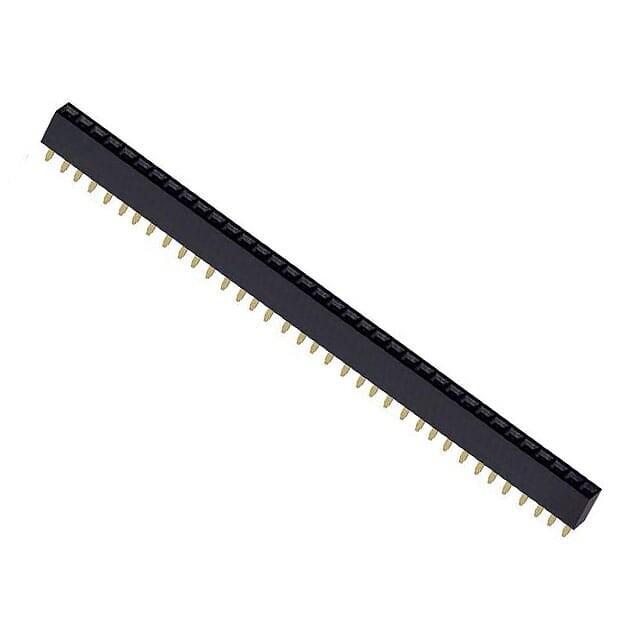

| HDR100IMP40F-G-V-TH - CHIP QUIK INC. - CONN HDR 40POS 0.1 GOLD PCB | |
| Packaging | Bulk |
| Features | - |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Insulation Height | 0.335" (8.51mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
