CF12JT680K

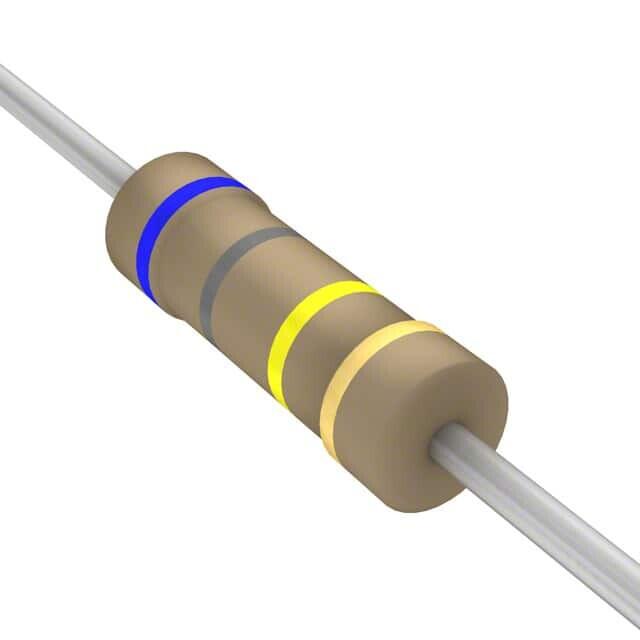

680 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film
| CF12JT680K - STACKPOLE ELECTRONICS INC - RES 680K OHM 5% 1/2W AXIAL | |
| Packaging | Cut Tape (CT) |
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±5% |
| Features | Flame Retardant Coating, Safety |
| Package / Case | Axial |
| Temperature Coefficient | 0/ -850ppm/°C |

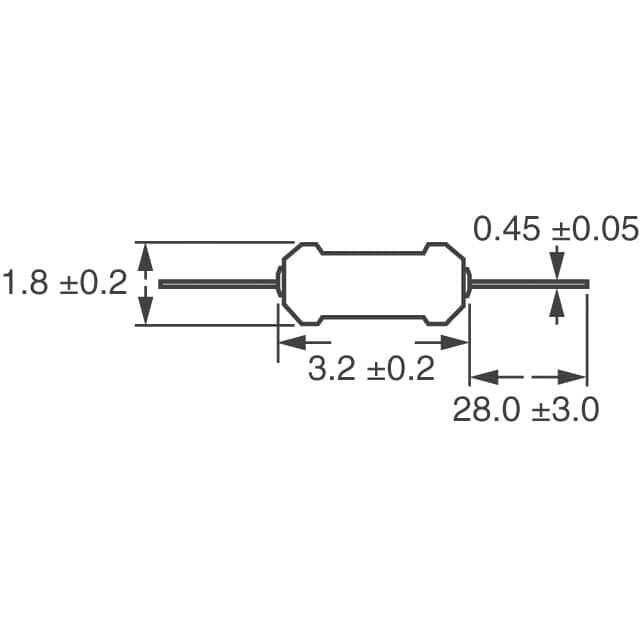

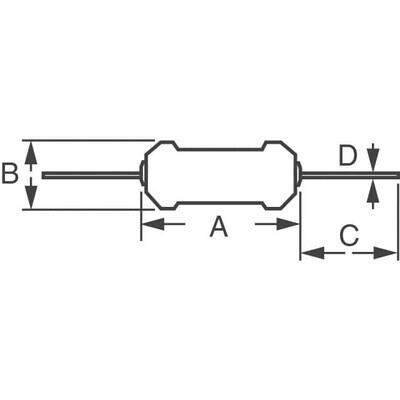

| Size / Dimension | 0.106" Dia x 0.335" L (2.70mm x 8.50mm) |
| Composition | Carbon Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Resistance | 680 kOhms |
