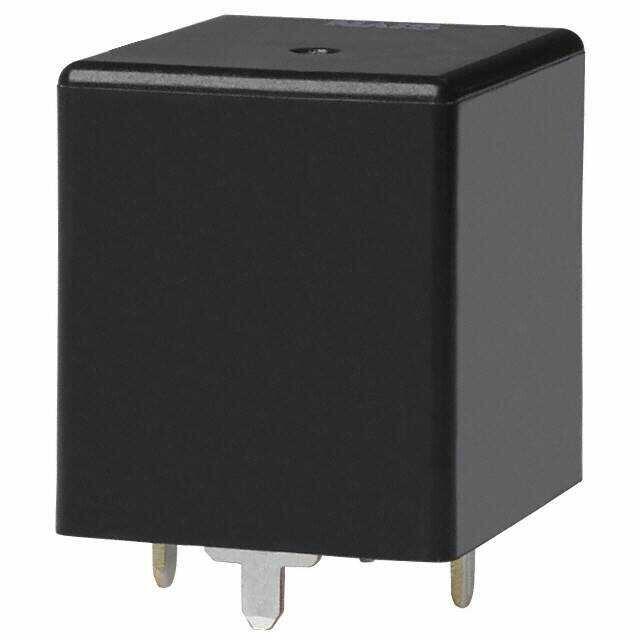

| CB1AH-P-12V - PANASONIC ELECTRIC WORKS - RELAY AUTOMOTIVE SPST 70A 12V | |
| Packaging | Bulk |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Coil Current | 117 mA |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 70 A |
| Switching Voltage | 14VDC - Nom |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 7 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
