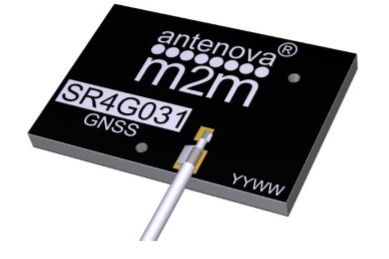

ANTENOVA SR4G031-100 - 1559-1609 MHz GNSS/GPS ANTEN 100mm KABLO | |
Frequency | 1.559 GHz - 1.61 GHz |
Product | PCB Antennas |
Product Type | GPS Antennas - GNSS, GLONASS, Galileo, Beidou |
Application | GNSS |
Gain | 2.45dBi |
Impedance | 50Ω |
Operating Temperature | -40°C to 85°C |
Number of Bands | 1 Band |
Termination Style | Connector |
Mounting Style | Adhesive Mount |

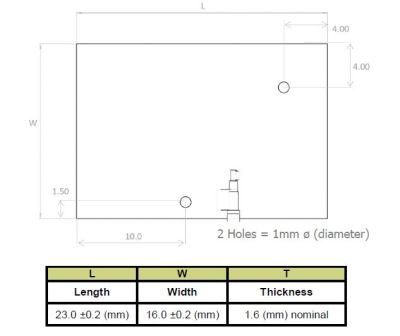

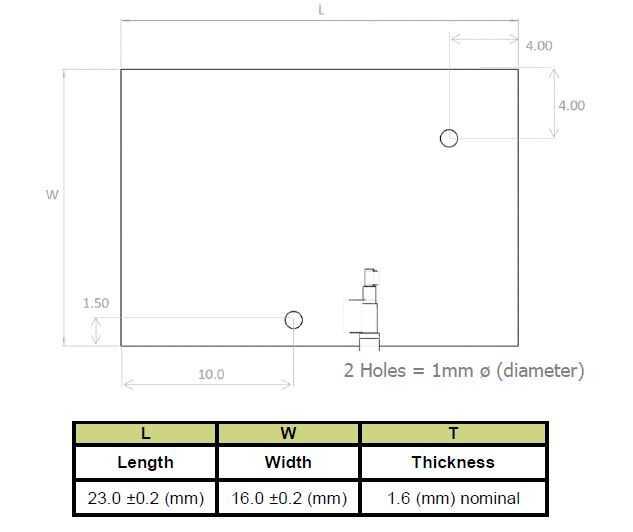

Length | 23 mm |
Width | 16 mm |
Height | 1.7 mm |
Polarization | Linear |
Series | Robusta |
Antenna Connector Type | MHF IPEX |
Cable Length | 100mm |
