DWM3000

DWM3000 Module

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

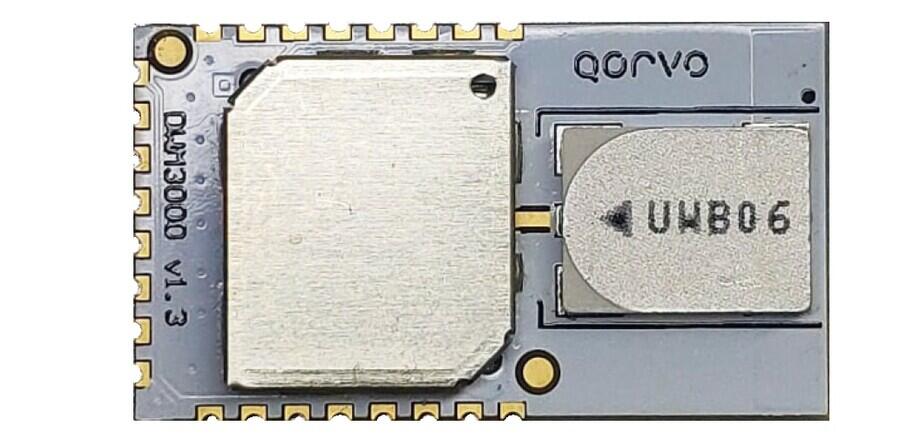

DWM3000 Module - 1
DWM3000 Module - 2

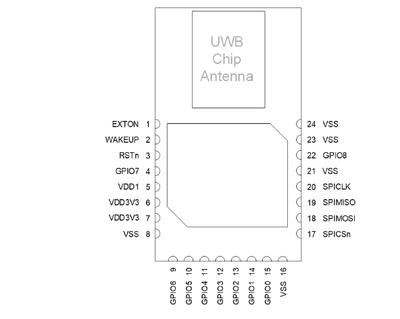

DWM3000 Module - 3
MAN. PRODUCT NUMBER : DWM3000 Copy
MANUFACTURER : Qorvo Copy
PACKAGE TYPE : Cut Tape (CT)

PRODUCT DETAILS

The DWM3000 module is based on Qorvo’s IEEE802.15.4z-2020 UWB compliant wireless transceiver, the DW3110 IC. DWM3000 is pin and size compatible with the DWM1000, and it offers full flexibility to support a broad range of UWB applications. When compared with the previous-generation module, the DWM3000 offers substantial improvements on power consumption and the addition of CH9 support.

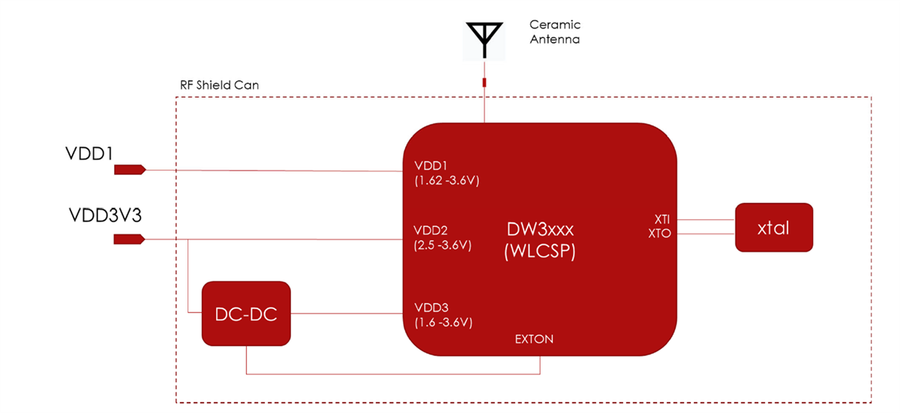

  • Integration of DW3110 IC, antenna, power management and optimum RF layout simplifies design integration

  • Easily interfaced via SPI slave to a wide range of microcontrollers

  • Support IEEE 802.15.4-2015 and IEEE 802.15.4z-2020 (BPRF mode)

  • Data rates of 850Kbps and 6.8Mbps

  • Worldwide UWB support with UWB Channels 5 (6.5GHz) and CH9 (8GHz)

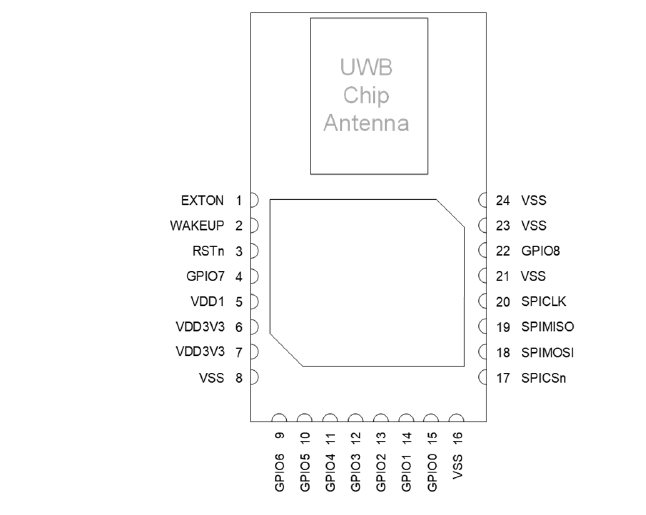

  • 23mm x 13mm x 2.9mm 24-pin side castellations

  • Supports ToF, TWR and TDoA location schemes

The DWM3000 is currently shipping as engineering sample units.
