Qorvo® DWM3001CDK Genel Bakış

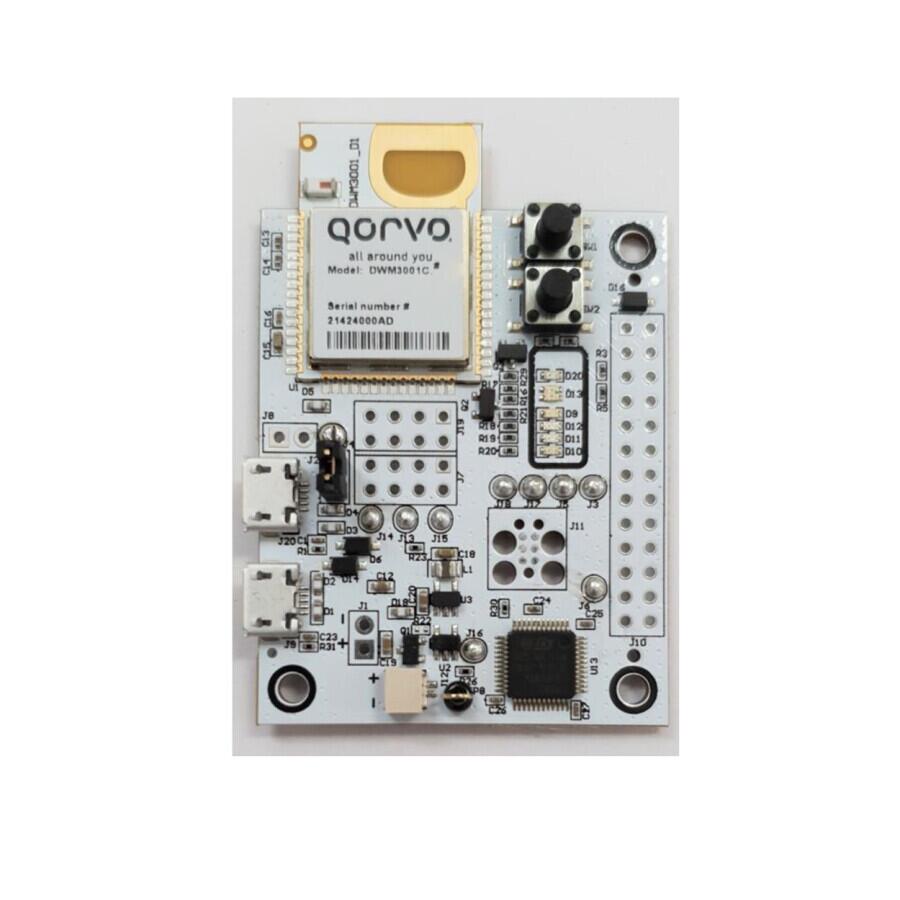

The Qorvo® DWM3001CDK has been developed as a development board for the DWM3001C fully integrated (UWB) transceiver module based on the Qorvo DW3110 IC. This kit can be used to evaluate hardware performance as a TWR or TDoA Tag and build an evaluation real time location system (RTLS).

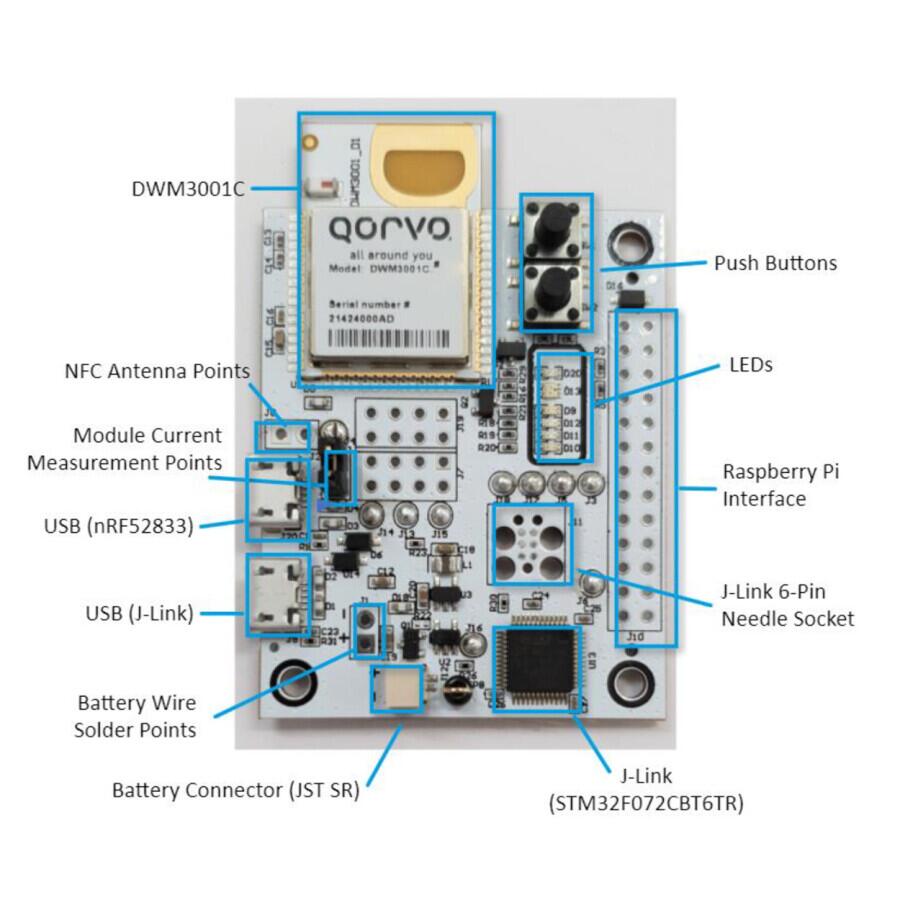

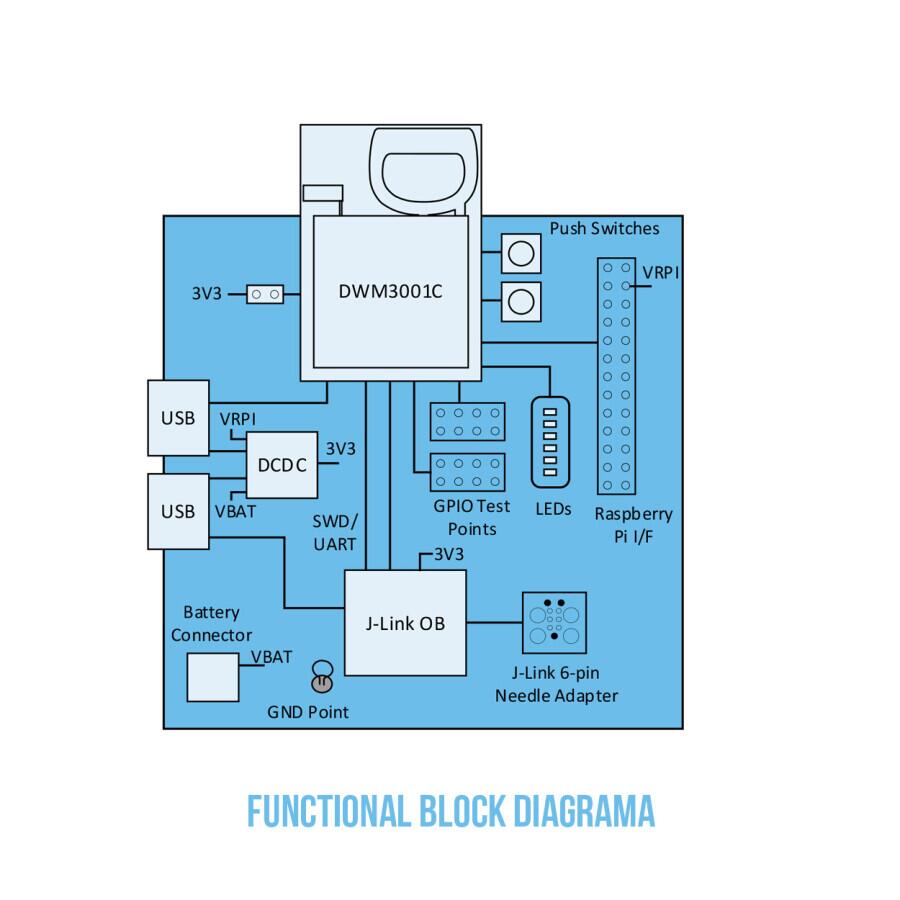

An on-board J-Link debugger provides SWD and UART interfaces to the DWM3001C. Two micro-USB ports connect to the J-Link and DWM3001C USB interface. The board can be powered from either of these USB ports, a Raspberry Pi interface, a battery or an external power supply.
The DWM3001C is designed to be compliant to the FiRa™ PHY and MAC specifications, enabling interoperability with other FiRa™ compliant devices.
Qorvo® DWM3001CDK Teknik Özellikler
- Convenient kit for evaluation of DWM3001C UWB module
- J-Link on-board for debug and flashing via USB
- USB port for direct connection to DWM3001C USB interface
- 26 pin Raspberry Pi compatible header
- Reset and user-defined buttons and LEDs
- Access to all DWM3001C GPIOs and interfaces
- Measure module current via header on VCC trace
- Supports UWB RF bands 5 (6.5 GHz) and 9 (8 GHz)
- nRF52833 Soc with Bluetooth 5.2
- Two integrated antennas for BLE and UWB
- IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant
- Software development with free to use IDE and debugger
- Fully aligned with FiRa™ PHY, MAC and certification development. Works with Apple Nearby Interaction software
- Software suite compliant with FiRa PHY/MAC specification.
Qorvo® DWM3001CDK Uygulama Alanları
- Evaluation of hardware performance as tag or anchor
- Building block for low power TWR and TDoA RTLS systems
Raspberry Pi Arabirimi
DWM3001CDK Raspberry Pi Arabirimi
