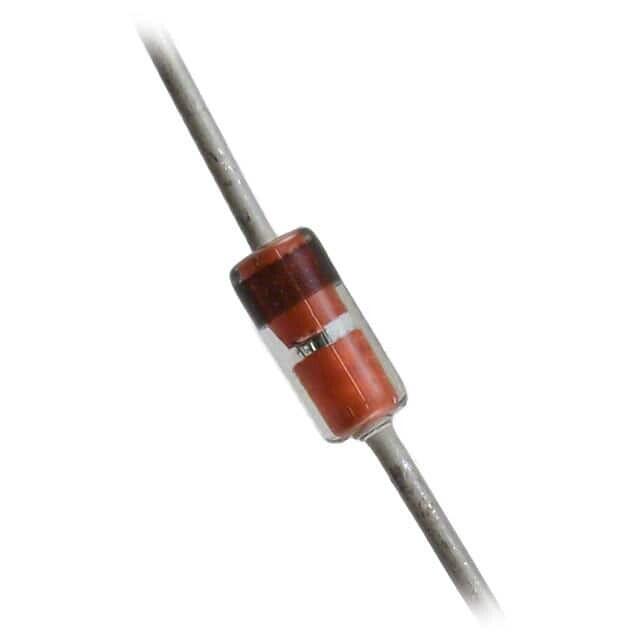

1N4448TR - ONSEMI - DIODE GEN PURP 100V 200MA DO35 | |
Packaging | Tape & Reel (TR) |
Package / Case | DO-204AH, DO-35, Axial |
Mounting Type | Through Hole |
Diode Type | Standard |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 4 ns |
Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
Current - Average Rectified (Io) | 200mA |
Supplier Device Package | DO-35 |
Operating Temperature - Junction | 175°C (Max) |
Voltage - DC Reverse (Vr) (Max) | 100 V |
Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
