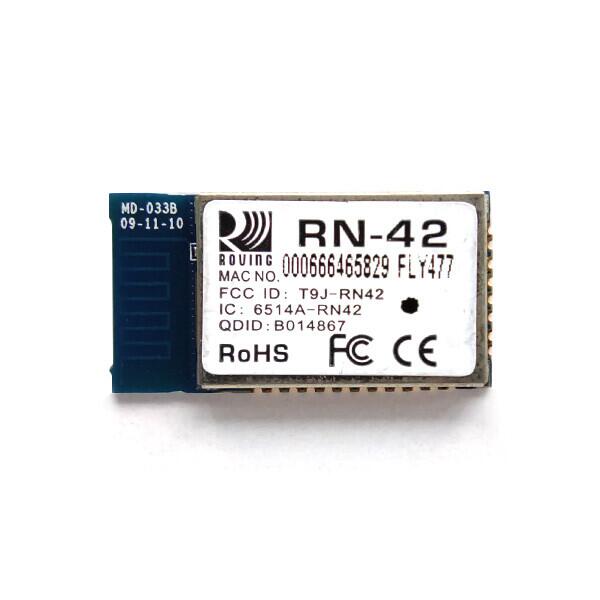

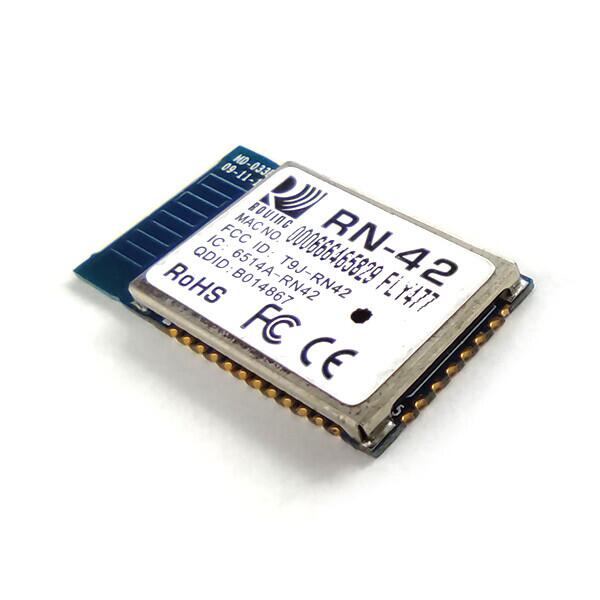

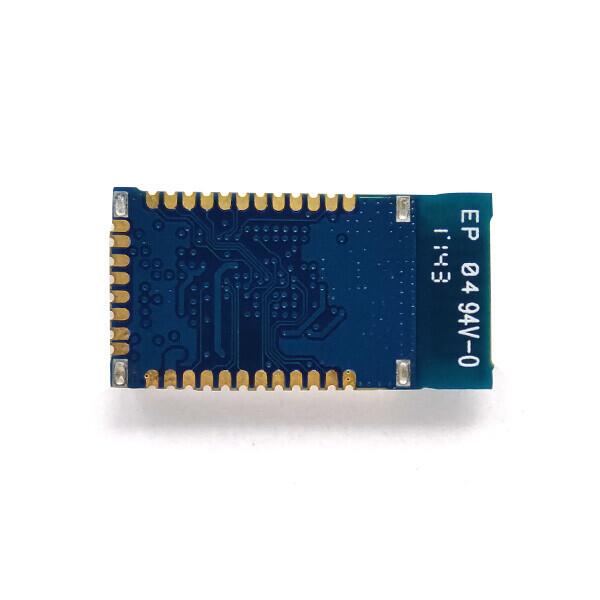

RN-42 | |
Protocol | Bluetooth v2.1 +EDR, Class 2 |
Frequency | 2.4GHz |
Data Rate | 300kbps |
Power - Output | 4dBm |
Sensitivity | -80dBm |
Serial Interfaces | UART |
Antenna Type | Integrated, Trace |
Voltage - Supply | 3V ~ 3.6V |
Current - Transmitting | 30mA |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 85°C |
Package / Case | 35-SMD Module |
