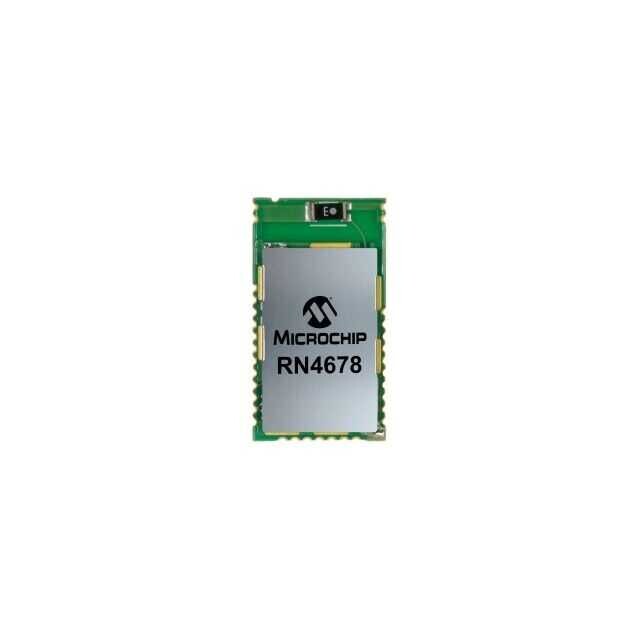

RN4678APL-V/RM124
Bluetooth Bluetooth v5.0 + EDR Transceiver Module 2.4GHz Integrated, Chip Surface Mount
| RN4678APL-V/RM124 - MICROCHIP TECHNOLOGY - CERTIFIED DUAL MODE BLUETOOTH MO | |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.0 + EDR |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 1Mbps |
| Power - Output | 10dBm |
| Sensitivity | -92dBm |
| Serial Interfaces | GPIO, UART |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | IS1678 |
| Memory Size | 500kB Flash, 320kB ROM, 28kB SRAM |
| Voltage - Supply | 3.3V ~ 4.2V |
| Current - Receiving | 37mA |
| Current - Transmitting | 43mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Package / Case | 33-SMD Module |
