1394353-2

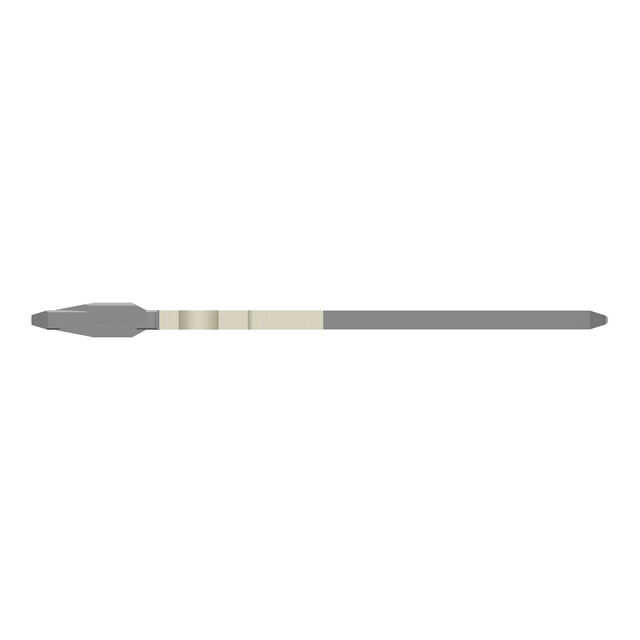

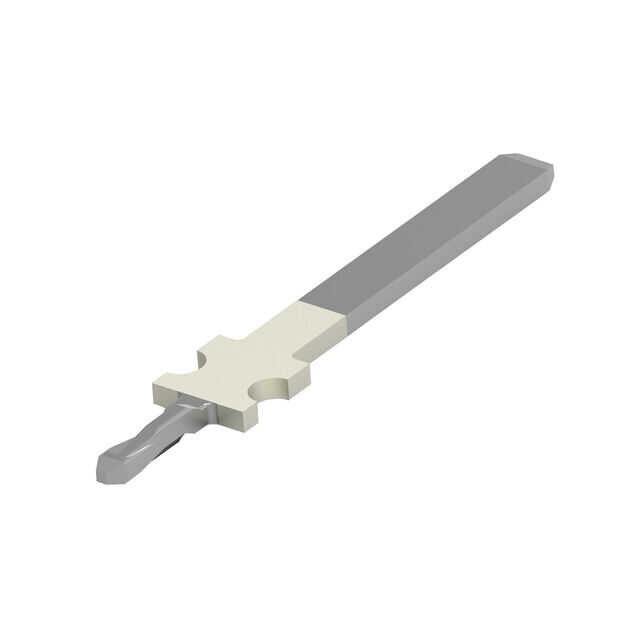

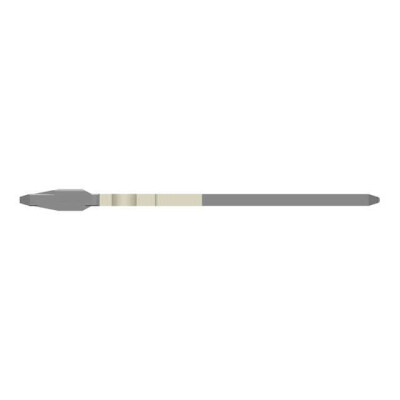

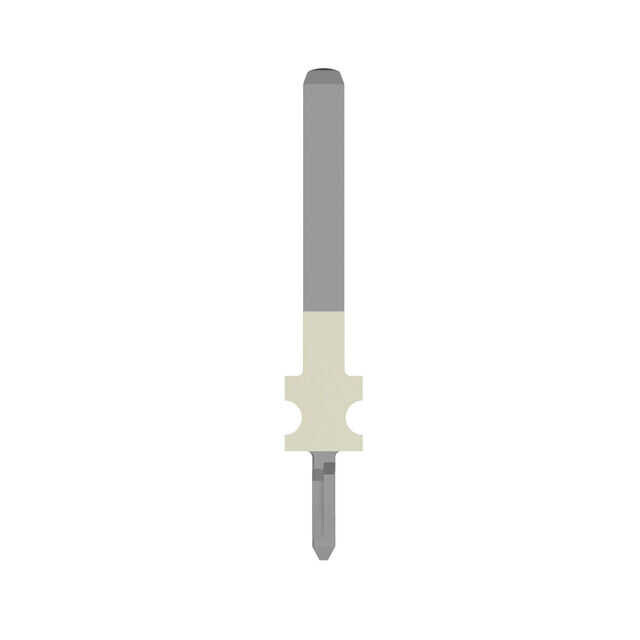

Single Post Terminal Connector Through Hole Tin
| 1394353-2 - TE CONNECTIVITY AMP CONNECTORS - FLACHSTE A-P 1,5 | |
| Terminal Type | Single Post |
| Terminal Style | Pin Retention |
| Pin Size - Above Flange | - |
| Pin Size - Below Flange | 0.059" (1.50mm) Square |
| Length - Above Flange | - |
| Length - Below Flange | - |
| Length - Overall | 0.406" (10.30mm) |
| Flange Diameter | - |
| Mounting Hole Diameter | 0.045" (1.15mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Copper Alloy |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
