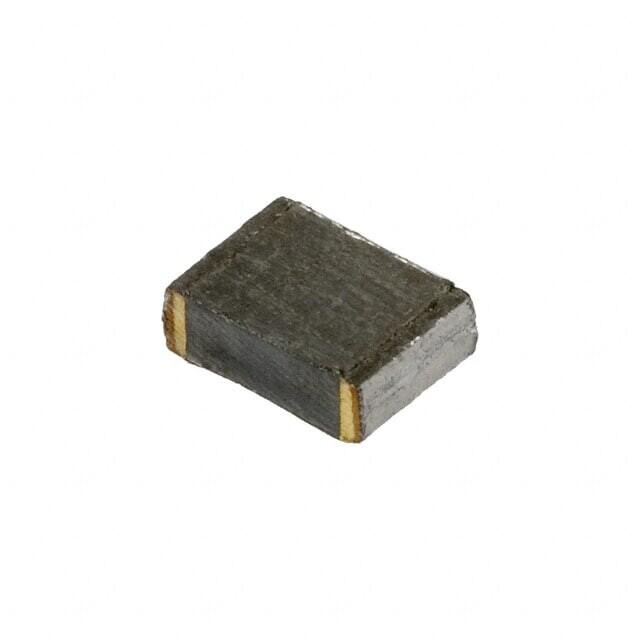

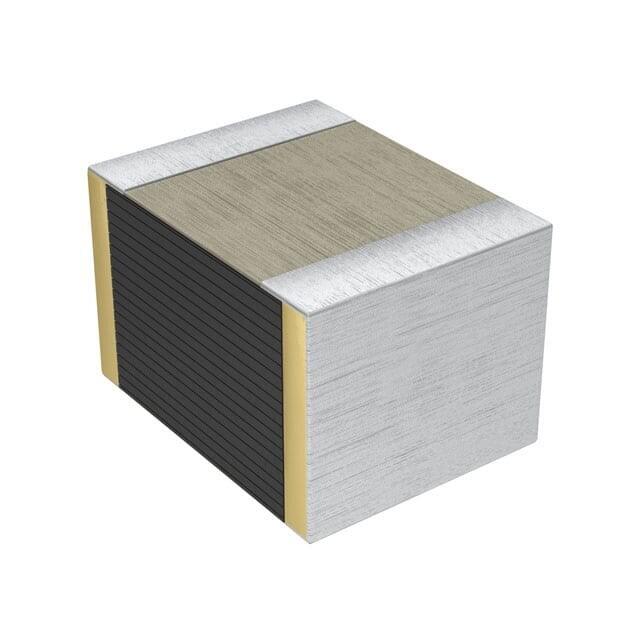

ECH-U1C104JX5 - PANASONIC ELECTRONIC COMPONENTS - CAP FILM 0.1UF 5% 16VDC 1210 | |
Packaging | Digi-Reel® |
Tolerance | ±5% |
Features | - |
Package / Case | 1210 (3225 Metric) |
Mounting Type | Surface Mount |
Operating Temperature | -55°C ~ 125°C |
Applications | General Purpose |
Lead Spacing | - |
Termination | Solder Pads |
Ratings | - |
Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
Voltage Rating - AC | 11V |
Voltage Rating - DC | 16V |
Height - Seated (Max) | 0.091" (2.30mm) |
Capacitance | 0.1 µF |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
