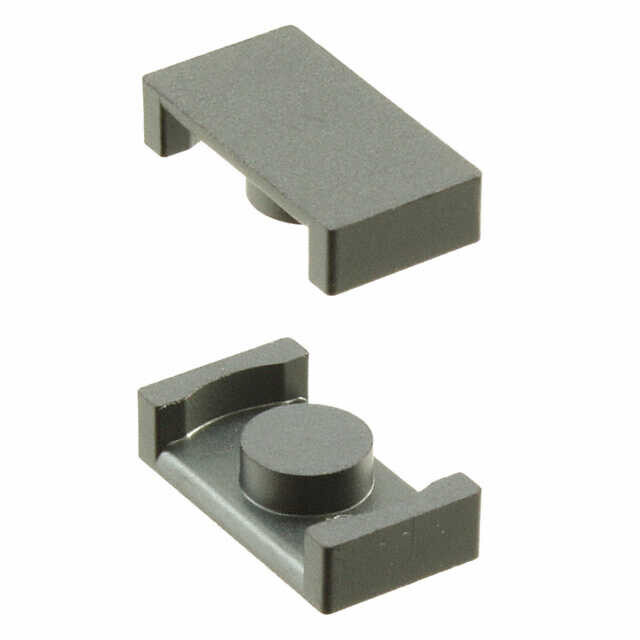

| B65525J0000R608 - EPCOS - TDK ELECTRONICS - FERRITE CORE ER PCS200 | |
| Packaging | Bulk |
| Tolerance | -20%, +30% |
| Material | PC200 |
| Diameter | - |
| Length | 0.433" (11.00mm) |
| Width | 0.236" (6.00mm) |
| Height | 0.197" (5.00mm) |
| Core Type | ER |
| Supplier Device Package | ER 11 x 5 |
| Initial Permeability (µi) | 800 |
| Finish | Uncoated |
| Gap | Ungapped |
| Effective Permeability (µe) | 580 |
| Core Factor (ΣI/A) mm⁻¹ | 1.1 |
| Effective Length (le) mm | 14.1 |
| Effective Area (Ae) mm² | 12.4 |
| Minimum Core Cross Section (Amin) mm² | 10.3 |
| Effective Magnetic Volume (Ve) mm³ | 174 |
