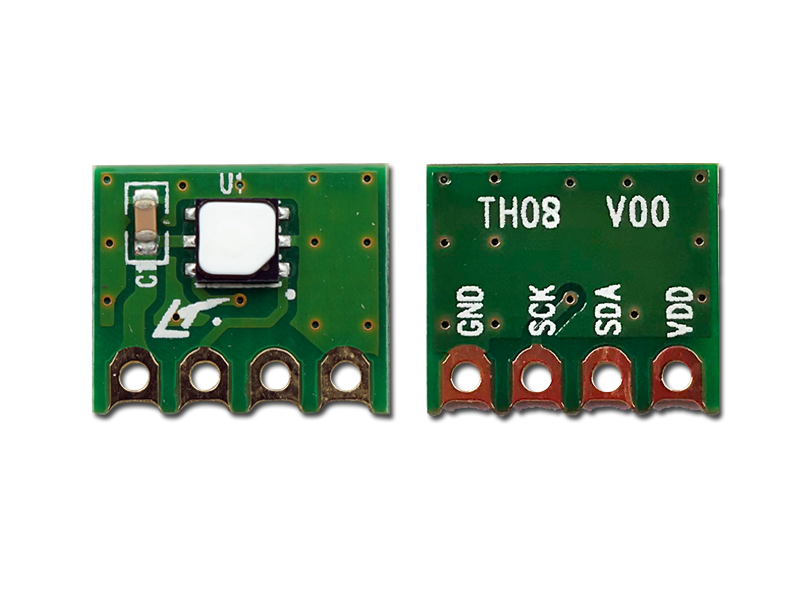

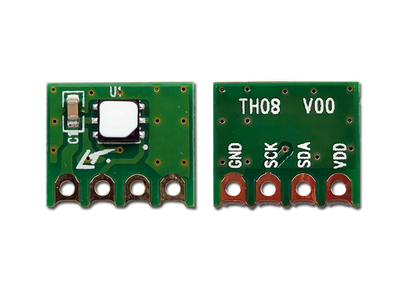

The TH08 I2C Humidity and Temperature Sensor is a monolithic CMOS IC integrating humidity and temperature
sensor elements, an analog-to-digital converter, signal processing, calibration data, and an I2C Interface. The
patented use of industry-standard, low-K polymeric dielectrics for sensing humidity enables the construction of low- power, monolithic CMOS Sensor ICs with low drift and hysteresis, and excellent long term stability. The humidity and temperature sensors are factory-calibrated and the calibration data is stored in the on-chip non- volatile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes
required
The TH08 is reflow solderable. It can be used as a hardware- and software-compatible drop-in upgrade for existing
RH/ temperature sensors , featuring precision sensing over a wider range and lower power consumption. The
optional factory-installed cover offers a low profile, convenient means of protecting the sensor during assembly (e.g., reflow soldering) and throughout the life of the product, excluding liquids (hydrophobic/oleophobic) and particulates. The TH08 offers an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point, and temperature, in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms.
TH08 Temperature & Humidity Sensör hakkında daha fazla teknik özellik için aşağıdaki bağlantıdan datasheet'e ulaşabilirsiniz.
