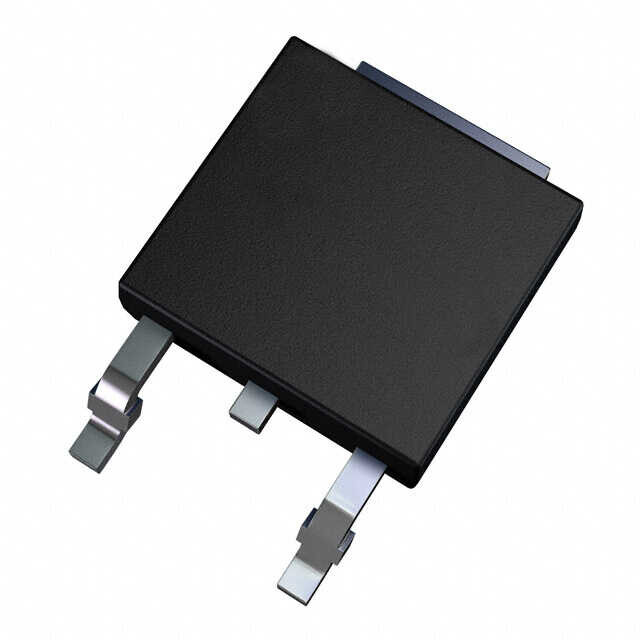

| STD36P4LLF6 - STMICROELECTRONICS - MOSFET P-CH 40V 36A DPAK | |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Rds On (Max) @ Id, Vgs | 20.5mOhm @ 18A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | DPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2850 pF @ 25 V |
