Main features:
Enhancing the optical performance of your display
Optical bonding is a process of affixing the touch panel (or just the protective glass) to the display using a liquid adhesive, gel or dry (film). In general, this process improves the parameters of the module – the optical performance, as well as durability.
The air-gap is the reason for the phenomena of reflection of sunlight. So, when the display is off, the Visual Area (V.A) is never black – it is gray.
When removing the air gaps, we reduce the number of internal reflecting surfaces, which increase of optical performance. This phenomenon improves readability, by reducing the reflection and correct contrast.
The high brightness, IPS TFT displays have a typical surface luminance of up to 1000 cd/m2 which means they are very bright even outdoors.
The full viewing angles allow the user to interact with the display in a natural and intuitive way from every side. The high resolution provides crisp and clear colors.

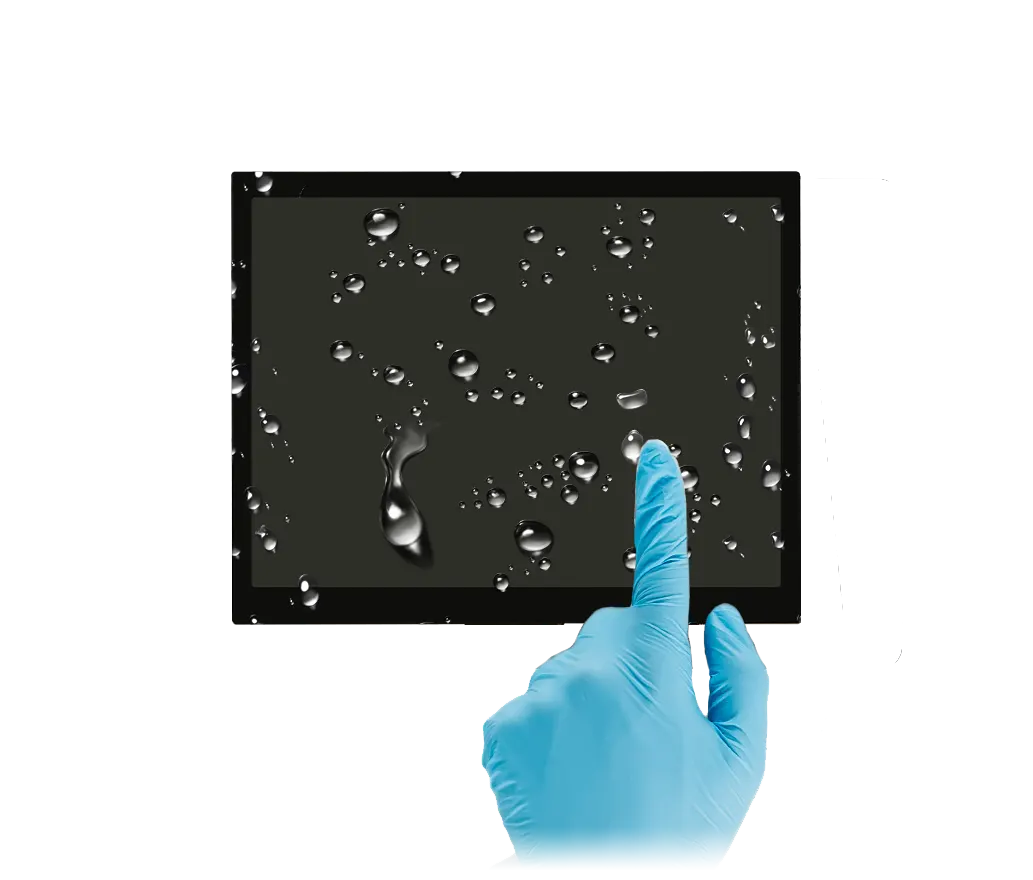

Reacts to the slightest touch
These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.
Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.
Main features:
Traditional shape with modern functionality
aTouch was designed to provide the functionality of a modern Projected Capacitive Touch panel in a traditional shape and size perfect for an upgrade of a device. Thanks to the absolute flat design and multi-touch feature, it will significantly raise the value of any project. It features chemically strengthened glass, which has increased durability, thanks to the process of ion-exchange. They are easy to assemble, easy to clean and easy to implement into your design.
Newly built devices most often use the uxTouch panel which is stuck to the outside of the device and is slightly larger than the display – it looks nice and modern. However, in the devices that only need an upgrade, the panel often needs to be the same size as the display. Thus, there are many customers who require the solution provided by aTouch in order to mount the display from the inside into the classic hole.
You can customize LVDS / RGB / MIPI displays in many different ways.
As you can see the possibilities are endless. All you need to do is choose.
| RVT35HHTNWCA0 - RIVERDI - RVT35HHTNWCA0 - 3.5” IPS 320x240, RGB, aTouch air bonding | |
| Weight | 60 g |
| Dimensions | 93.96 × 76.44 × 5.41 mm |
| Size (inch.) | 3.5" |
| Touch Screen | Projected Capacitive Touch Panel |
| Touch Screen Bonding Technology | Air Bonding |
| Air Bonding | aTouch |
| Interfaces | RGB |
| Mounting Frame | Without Frame |
| Resolution | 320×240 |
| Active area (mm) | 70.08×52.56 |
| Brightness (cd/m²) | 800 |
| Operating temp. (°C) | -20~70 |
| Dot pitch (mm2) | 0.219×0.219 |
| LCD type | IPS, Normally black, Transmissive, TFT |
| Input Voltage (V) | TFT: 3.3 V /PCAP: 5.0V (USB)/ (3.3 V (I2C), 3.3 |
| Viewing direction | Full Angle |
| Backlight Type | 9 LEDs |
| Pixel Arrangement | RGB Vertical Stripe |
| Driver IC | CTP driver: ILI2132A, LCD driver: SC7272A |
