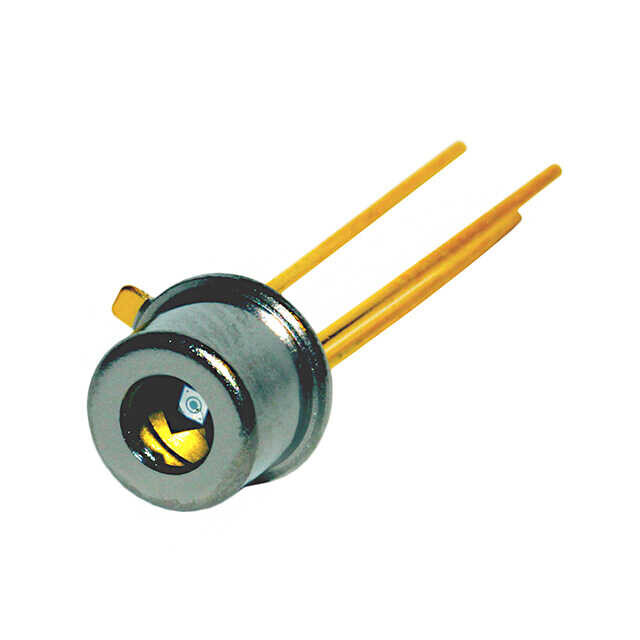

| MT03-023 - MARKTECH OPTOELECTRONICS - SENSOR PHOTODIODE 950NM TO46-3 | |
| Packaging | Bulk |
| Package / Case | TO-46-3 Lens Top Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 100ns |
| Viewing Angle | - |
| Spectral Range | 250nm ~ 1100nm |
| Color - Enhanced | Blue/Green |
| Responsivity @ nm | 0.22 A/W @ 365nm |
| Active Area | 1.2mm² |
| Current - Dark (Typ) | 200pA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
