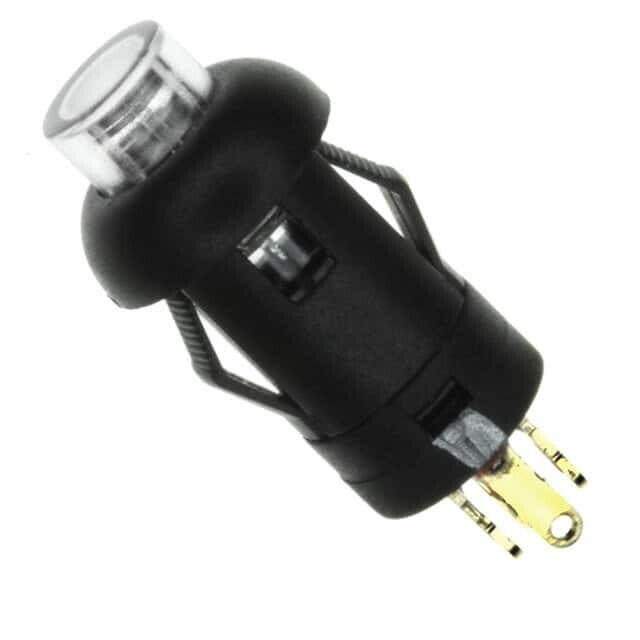

| LP1OA1AG - E-SWITCH - SWITCH PUSH SPST-NO 0.1A 30V | |
| Packaging | Bulk |
| Features | - |
| Current Rating (Amps) | 100mA (DC) |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | SPST-NO |
| Type | Standard, Illuminated |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Solder Lug |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.2 VDC |
| Actuator Type | Round, Button |
| Ingress Protection | - |

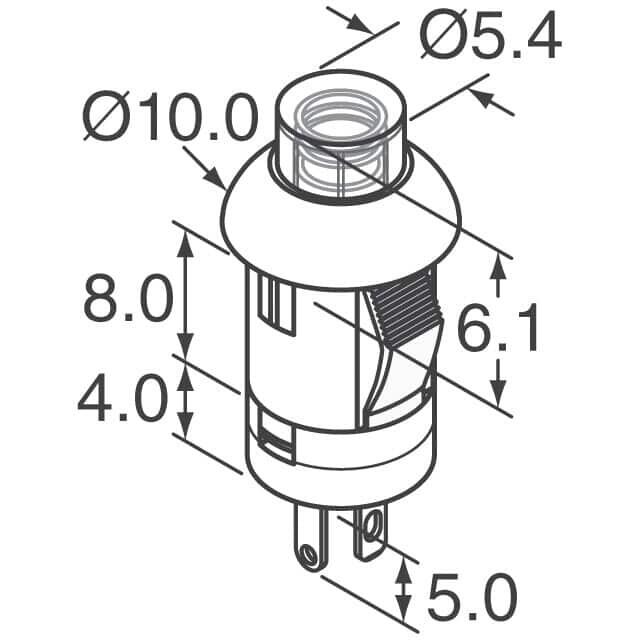

| Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Color - Actuator/Cap | Clear |
| Actuator Marking | No Marking |
| Voltage Rating - DC | 30 V |
