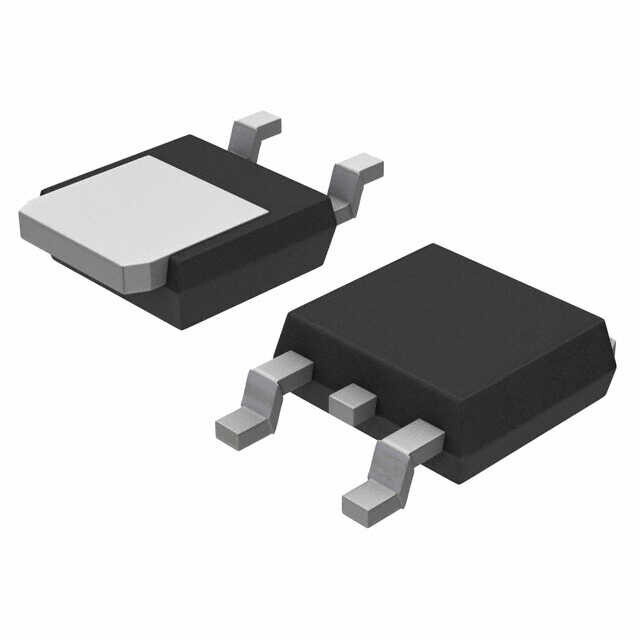

| NCP5501DT50RKG - ONSEMI - IC REG LINEAR 5V 500MA DPAK | |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 500 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | DPAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| PSRR | 75dB ~ 70dB (120hZ ~ 10kHz) |
| Voltage Dropout (Max) | 0.7V @ 500mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 20 mA |
