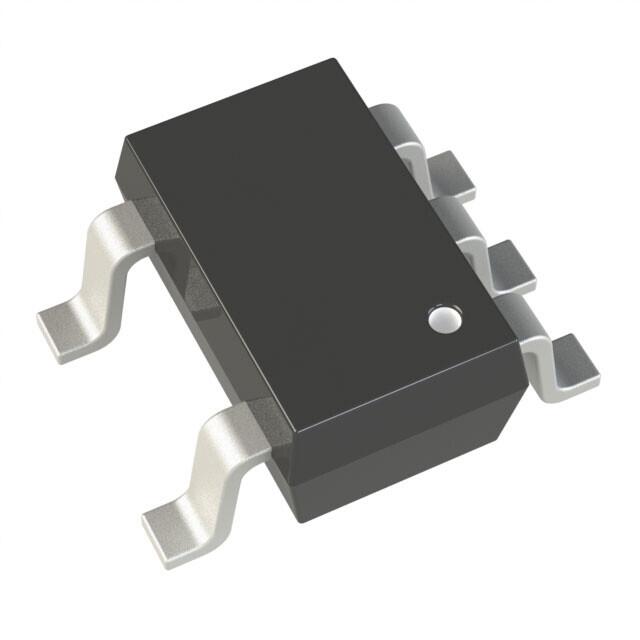

ADP7118AUJZ-3.3-R7 - ANALOG DEVICES INC. - IC REG LIN 3.3V 200MA TSOT23-5 | |
Packaging | Cut Tape (CT) |
Package / Case | SOT-23-5 Thin, TSOT-23-5 |
Output Type | Fixed |
Mounting Type | Surface Mount |
Current - Output | 200mA |
Operating Temperature | -40°C ~ 125°C (TA) |
Output Configuration | Positive |
Current - Quiescent (Iq) | 140 µA |
Voltage - Input (Max) | 20V |
Number of Regulators | 1 |
Supplier Device Package | TSOT-23-5 |
Voltage - Output (Max) | - |
Voltage - Output (Min/Fixed) | 3.3V |
Control Features | Enable, Soft Start |
PSRR | 88dB ~ 50dB (10kHz ~ 1MHz) |
Voltage Dropout (Max) | 0.42V @ 200mA |
Protection Features | Over Current, Over Temperature |
Current - Supply (Max) | 320 µA |
