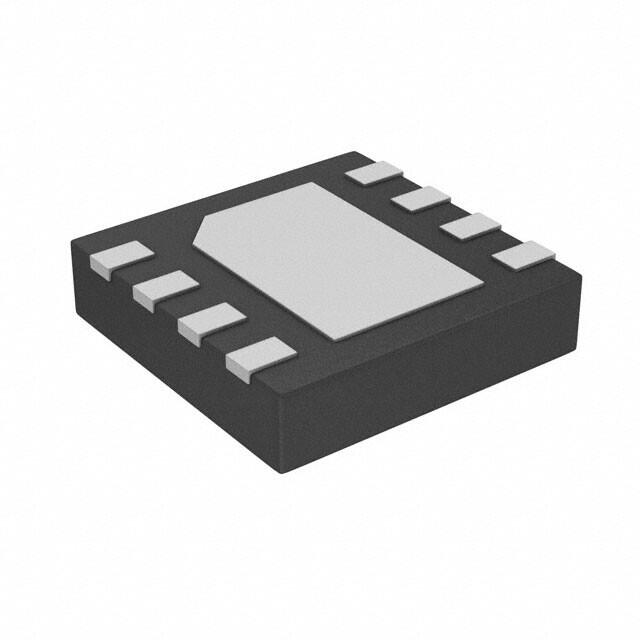

MCP4551T-104E/MF - MICROCHIP TECHNOLOGY - IC DGTL POT 100KOHM 257TAP 8DFN | |
Packaging | Cut Tape (CT) |
Resistance (Ohms) | 100k |
Tolerance | ±20% |
Features | Mute, Selectable Address |
Package / Case | 8-VDFN Exposed Pad |
Mounting Type | Surface Mount |
Memory Type | Volatile |
Interface | I²C |
Configuration | Potentiometer |
Operating Temperature | -40°C ~ 125°C |
Number of Taps | 257 |
Voltage - Supply | 1.8V ~ 5.5V |
Taper | Linear |
Supplier Device Package | 8-DFN (3x3) |
Resistance - Wiper (Ohms) (Typ) | 75 |
Temperature Coefficient (Typ) | 150ppm/°C |
Number of Circuits | 1 |
