102010328

ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO

YENİ
Resimler temsilidir Ürün özellikleri için lütfen ürün açıklamalarını kontrol ediniz

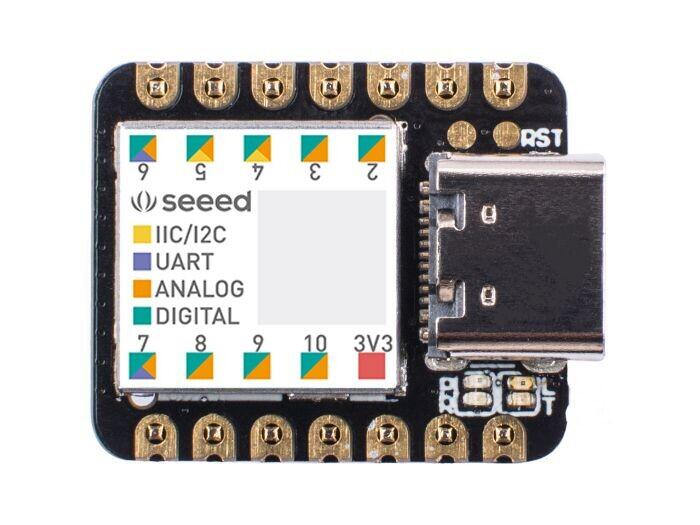

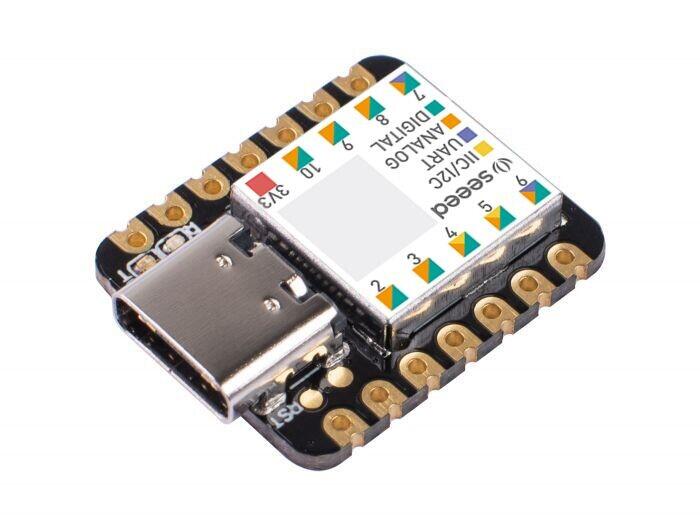

ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 1
ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 2
ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 3
ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 4
ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 5
ATSAMD21G18 SEEEDUINO XIAO - ARDUINO MICROCO - 6
ÜRETİCİ KODU : 102010328 KOPYALA
ÜRETİCİ : Seeed Technology Co., Ltd KOPYALA
TEDARİKÇİ KODU : 1597-102010328-ND KOPYALA
TEDARİKÇİ : Digi-KEY Electronics
TEDARİK SÜRESİ : 7 - 10 İş Günü
PAKETLEME TİPİ : Bulk
STOK DURUMU : 3799 Adet (Yurt Dışı)
YURT DIŞINDAN KARGO ve GÜMRÜK DAHİL
TESLİMAT SÜRESİ 7 - 10 İŞ GÜNÜ
KDV Dahil Birim Fiyat
Satış fiyatına tüm gümrük, yurtdışı kargo ve vergi masrafları DAHİLDİR.
143,898 TL
6,480 USD +KDV
Adet
Tahmini Kargo Tarihi: 07.02.2023 - 12.02.2023
Hafta sonu ve resmi tatil tarihlerinde, sonraki ilk iş gününde kargoya verilir.
Gelince Haber Ver
Ürün Yurtiçi / Yurtdışı stoklarımıza girdiğinde sizi haberdar edelim.
Stoklara Giriş Tarihi: 7 - 10
Miktar
Birim Fiyat
1
143,898 TL
6,480 USD +KDV
Yüksek Adetli Alımlarınız İçin Lütfen Teklif İsteyiniz.

PRODUCT DETAILS

  • Powerful CPU: ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21G18) with 256KB Flash,32KB SRAM

  • Flexible compatibility: Compatible with Arduino IDE

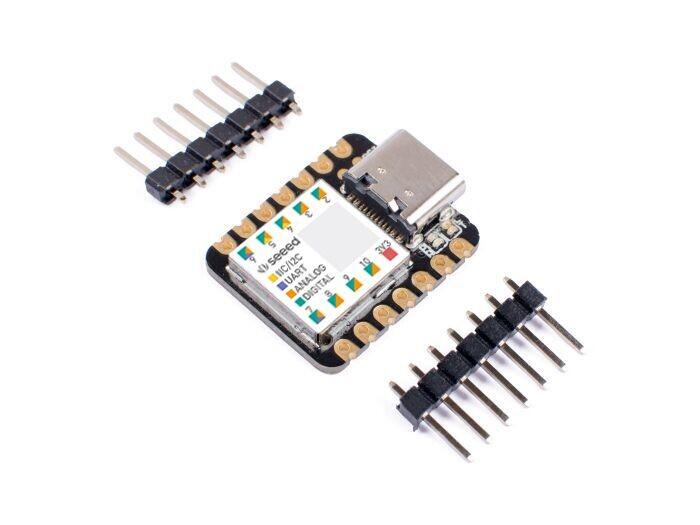

  • Easy project operation: Breadboard-friendly

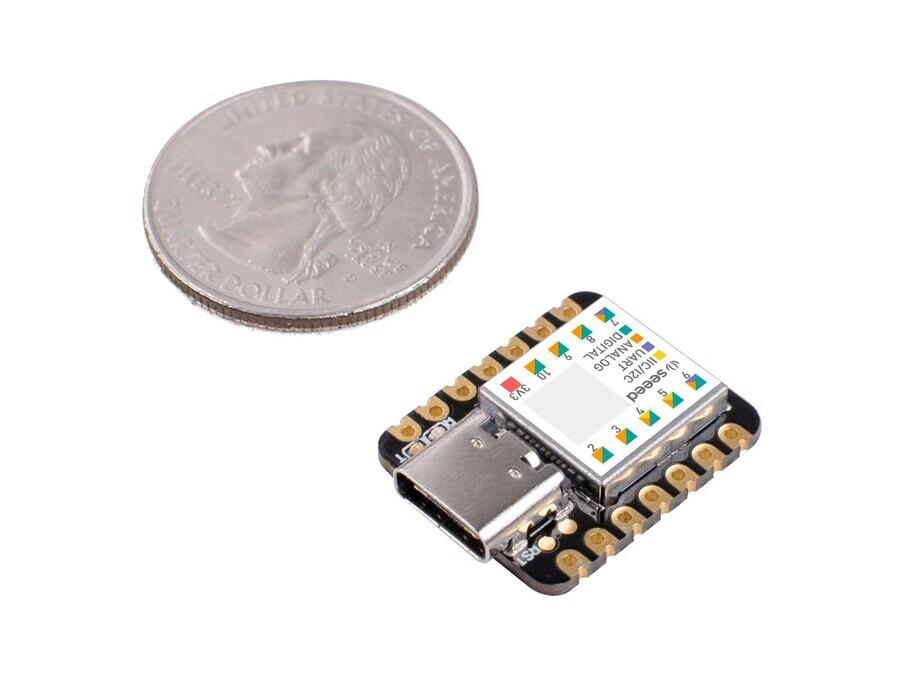

  • Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects.

  • Multiple development interfaces: 11 digital/analog pins, 10 PWM Pins, 1 DAC output, 1 SWD Bonding pad interface, 1 I2C interface, 1 UART interface, 1 SPI interface.

DESCRIPTION

Take a look at Seeeduino XIAO. What a small size and cute looking! It is the smallest member of the Seeeduino family. Seeeduino XIAO still carries the powerful CPU-ARM® Cortex®-M0+(SAMD21G18) which is a low-power Arduino microcontroller. On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.

Apart from the strong CPU, Seeeduino XIAO is excellent in many other functions. It has 14 GPIO PINs, which can be used for 11 analog PINs, 11 digital PINs, 1 I2C interface, 1 UART interface, and 1 SPI interface. Some PINs have various functions, A1/D1 to A10/D10 Pins have PWM functions and Pin A0/D0 has a function of DAC which means you can get true analog signals not PWM signals when you define it as an analog pin, that’s why 14 GPIO PINs can realize more I/O PINs and interfaces. Moreover, Seeeduino XIAO supports the USB Type-C interface which can supply power and download code. There are power pads at the back of the XIAO which support battery and make it designed for wearable devices to become realistic. Except for the power LED, we add a user LED on board for your better coding experience. Usually a Dev. Board as small as this size will use the chip’s inner crystal oscillator for time fixing, in order to make the clock more accurate, Seeeduino XIAO layouts an extra 32.768KHz to make the clock more stable.

Seeeduino XIAO is perfectly compatible with Arduino IDE, you can easily develop some small projects with the help of the large and comprehensive Arduino library.
So get one and you will soon love it!

Attention: All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.

This is the Wiki of the Seeeduino XIAO, you can view the basic settings of running the board.

SPECIFICATION:

  • CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz

  • Storage: 256KB Flash,32KB SRAM

  • I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin

  • Interface: 1 I2C interface,1 UART interface, 1 SPI interface

  • Power supply and downloading interface: USB Type-C interface

  • LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading

  • Reset button: two reset button short connect to reset

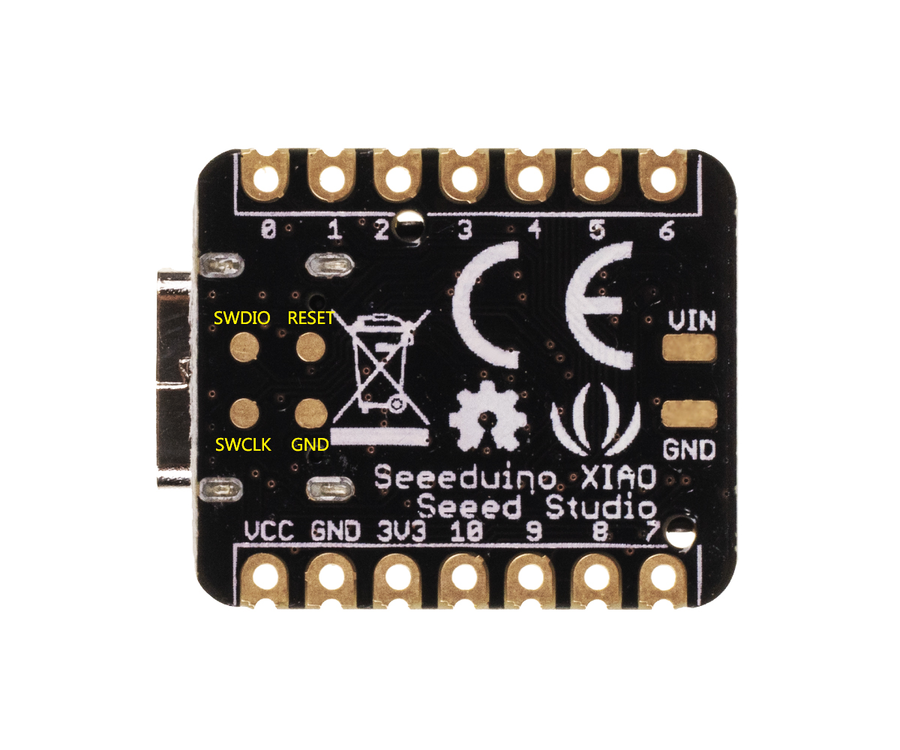

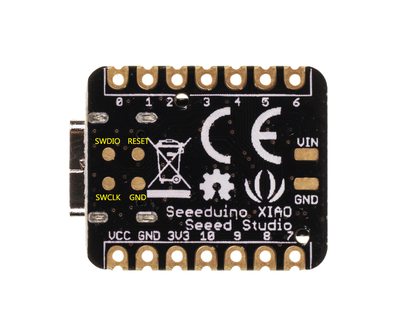

  • Power Pads: For the battery power supply

  • Software compatibility: Compatible with Arduino IDE

  • Projection cover for protecting the circuit

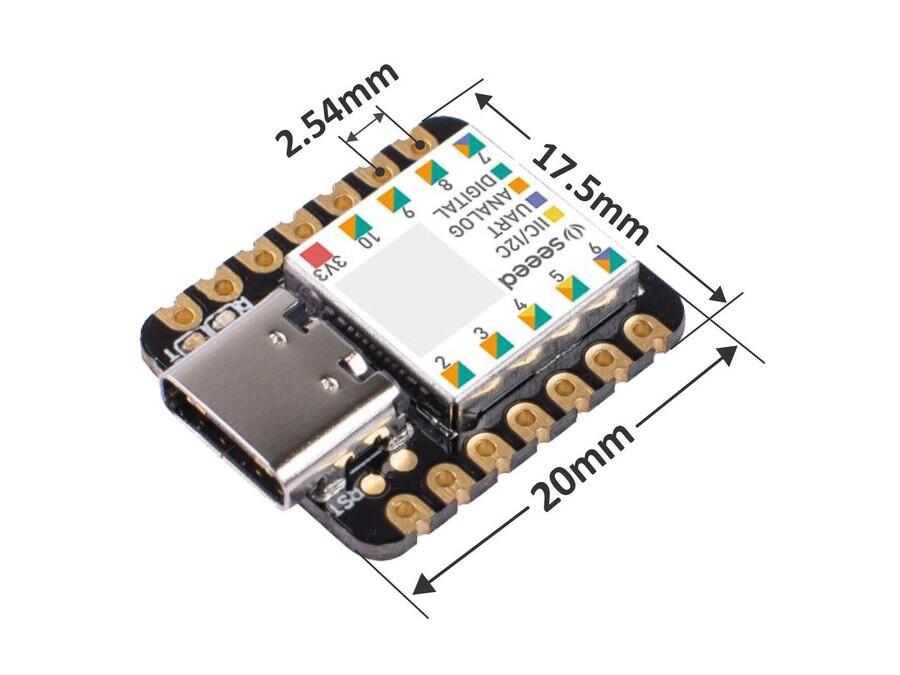

  • Dimensions: 20x17.5x3.5 mm

TYPICAL APPLICATION:

  • Wearable devices

  • Rapid prototyping (directly attached to the expanded PCB as a minimal system)

  • Perfect for all the projects need mini Arduino

  • DIY keyboard

  • USB development (USB to multi-channel TTL/USB host mode, etc.)

  • A scenario where you need to read multiple mock values The DAC output

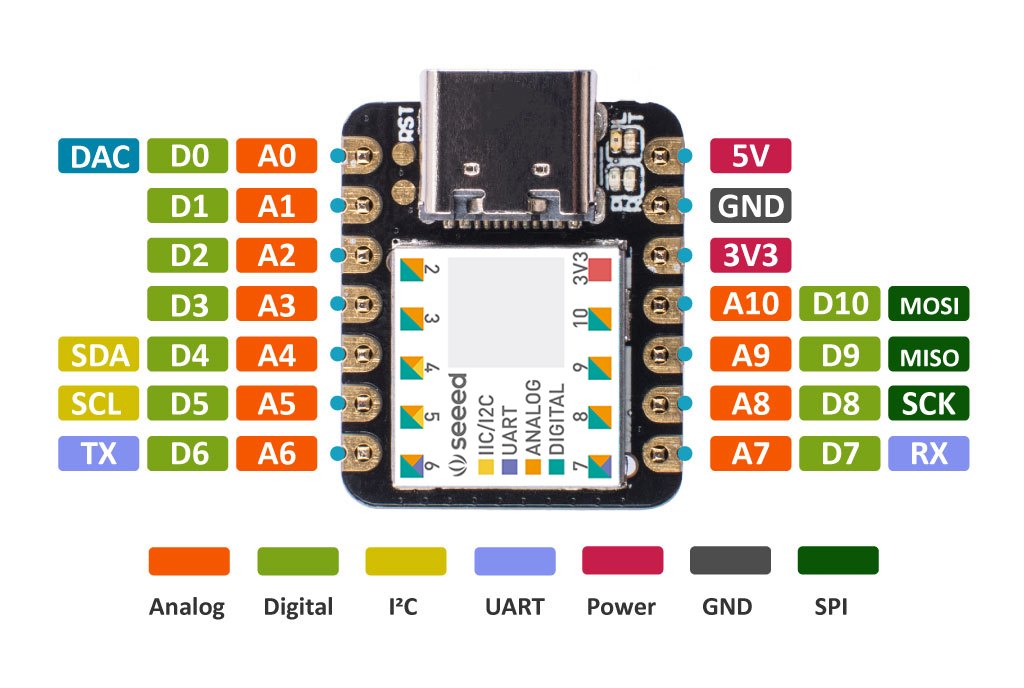

102010328_Seeeduino-XIAO-pinout

DEMO

COMMUNITY PROJECTS

[ATTACHMENT] Hardware schematic

[ATTACHMENT] ATSAMD218A-MU datasheet

[ATTACHMENT] How to use Seeeduino XIAO to log in to your Raspberry Pi

102010328 - SEEED TECHNOLOGY CO., LTD - SEEEDUINO XIAO - ARDUINO MICROCO
Board TypeEvaluation Platform
TypeMCU 32-Bit
Core ProcessorARM® Cortex®-M0+
Operating System-
PlatformSeeeduino XIAO
Utilized IC / PartATSAMD21G18
Mounting TypeFixed
ContentsBoard(s)
