5GTH935

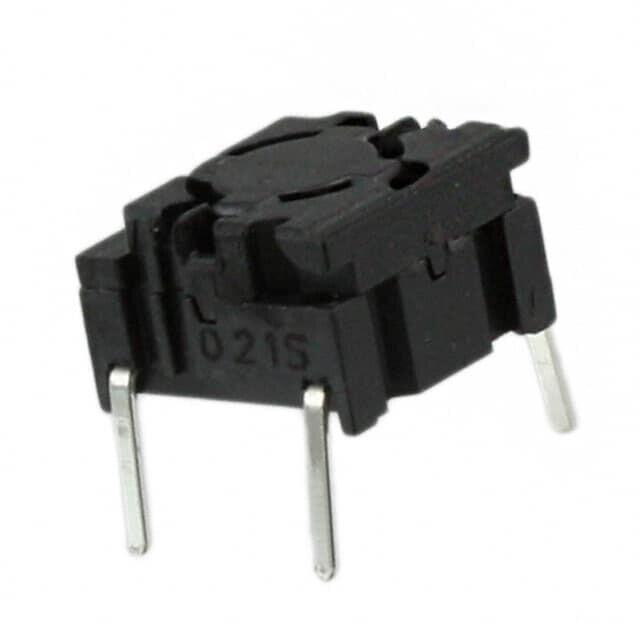

Tactile Switch SPST-NO Top Actuated Through Hole
| 5GTH935 - MEC SWITCHES - SWITCH TACTILE SPST-NO 0.05A 24V | |
| Packaging | Tube |
| Features | Sealed - Flux Protection |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 160°C |
| Termination Style | PC Pin |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Plunger for Cap |
| Operating Force | 350gf |
| Outline | 10.10mm x 10.10mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 6.40mm |
| Actuator Orientation | Top Actuated |
| Actuator Length, Right Angle | - |
