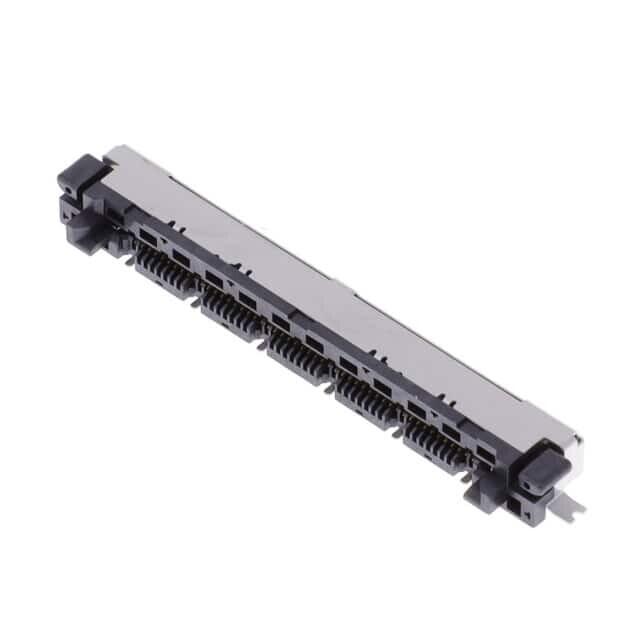

5039085120 - MOLEX - CONN FFC BOTTOM 51POS 0.5MM R/A | |
Packaging | Cut Tape (CT) |
Features | Solder Retention |
Contact Finish | Gold |
Voltage Rating | 50V |
Mounting Type | Surface Mount, Right Angle |
Number of Positions | 51 |
Pitch | 0.020" (0.50mm) |
Operating Temperature | -20°C ~ 85°C |
Termination | Solder |
Height Above Board | 0.148" (3.75mm) |
Locking Feature | - |
Material Flammability Rating | UL94 V-0 |
Actuator Material | - |
Contact Material | Copper Alloy |
FFC, FCB Thickness | 0.33mm |
Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
Cable End Type | Tabbed |
Flat Flex Type | FFC |
Connector/Contact Type | Contacts, Bottom |
