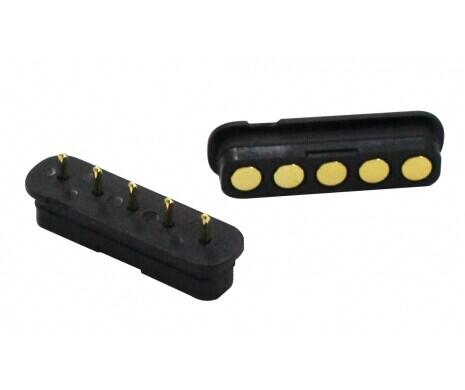

Pogo Pin Water proof Kontak Tipi, 5Pin Aralık 2.5mm T/L 3.0mm DIP w/o Cap
A pogo pin or spring-loaded pin is a Tip of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine Aralık, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.

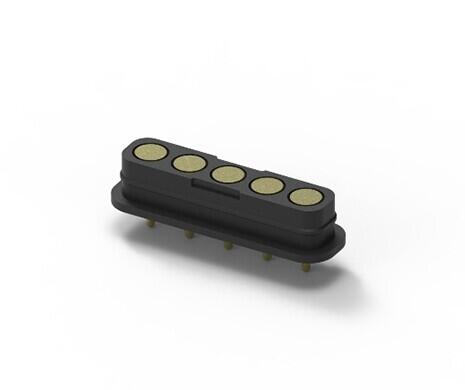

303C-541219-25-05 ATTEND - Pogo Pin Water proof Tip, 5Pin Aralık 2.5mm T/L 6.6mm W/H 5.4mm DIP w/o Cap | |
ELECTRICAL | |
Current Rating | 2A per pin |
Voltaj Değeri Voltaj Değeri | 12V AC/DC |
Contact Resistance | 50mΩ |
Insulation Resistance | 100MΩ |
Dielectric Withstanding Voltage | 500VAC |
MECHANICAL | |
Durability | 20,000 Cycles |
ENVIRONMENTAL | |
Çalışma Sıcaklığı range | -40°C~+85°C |
Storage temperature range | -40°C~+85°C |
Waterproof Level | IPX7 |
SOLDER ABILITY | |
Recommended IR Reflow Temperature | 250°C, 10Sec |
Product Specification Comparison Table | |||
Variation | Pin Count | Total Height | Current Rating |
Single | 1 Ping | 3.4 - 10.5 mm | 1 - 2A |
Multiple | 2 - 4 Pin | 5 - 7.5 mm | 1 - 2A |
WaterProof | 5 Pin | 5.4mm | 1 - 2A |
