632712000011

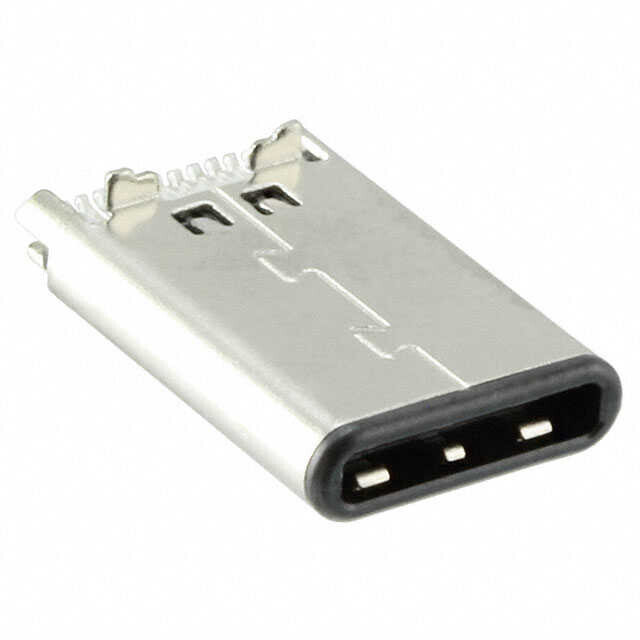

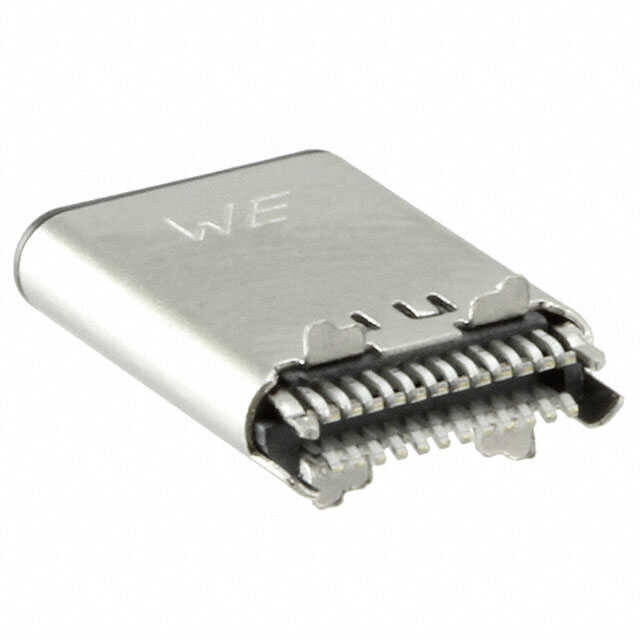

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 (22+2 Dummy) Position Board Edge, Straddle Mount
| 632712000011 - WÜRTH ELEKTRONIK - CONN PLUG USB3.1 TYPEC 24POS SMD | |
| Packaging | Cut Tape (CT) |
| Features | Cover |
| Voltage - Rated | 20VDC |
| Number of Contacts | 24 (22+2 Dummy) |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Plug |
| Current Rating (Amps) | 5A |
| Mounting Type | Board Edge, Straddle Mount |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 105°C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
