614108646521

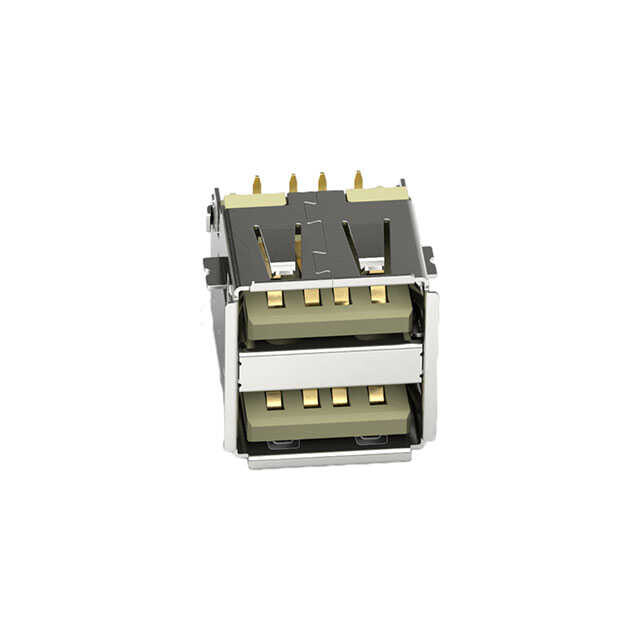

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Board Edge, Cutout; Through Hole, Right Angle
| 614108646521 - WÜRTH ELEKTRONIK - THR USB 2.0 TYPE A, DUAL MID-MOU | |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Number of Contacts | 8 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Board Edge, Cutout; Through Hole, Right Angle |
| Mounting Feature | Horizontal, Mid Mount |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 2 |
| Current Rating (Amps) | 2.5A |
| Voltage - Rated | 30VAC |
| Mating Cycles | 5000 |
| Shielding | Shielded |
