TDA51S-41HC Features
- Ultra-small, ultra-thin, chip scale SOIC package
- Baud rate up to 150Mbps
- Wide input supply range: 3 V to 5.5 V
- High isolation to 5000Vrms
- Nanosecond propagation delay
- Integrated overload, short-circuit protection and thermal shutdown
- High CMTI: ±150 kV (typical)
- Industrial operating ambient temperature range: -40℃ to +125℃
- RoHS-Compliant Packages: SOIC16-WB
TDA51S-41HC Applications
- 3.3V/5V conversion
- Bus isolated communication
- Isolated sensor interface
- Industrial automation systems
- Motor control
- Medical isolated
- Test and measurement
- Isolated ADC, DAC
TDA51S-41HC Functional Description
TDA51S-41HC is a family of high-performance reinforced digital isolators with an integrated isolated DC-DC converter. TDA51S-41HCeliminatetheneed for a separate, isolated power supply, which results in a small form factor, total isolation solution.
TDA51S-41HC device has three forward and one reverse-direction channels, and it has fail-safe mode option. If the input signal islost, defaultoutput is low for devices with H. In addition, other channel communication types, such as two forward channels and two reverse channels, four forwardchannels, four reverse channels, and many other channel combination types are under

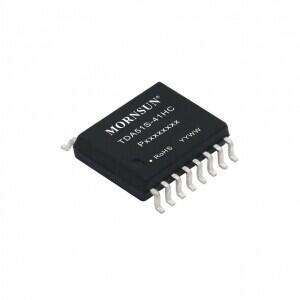

| TDA51S-41HC - SOIC package integrated isolatedDC-DCconverter |
| Part number | TDA51S-41HC |
| Package | SOIC |
| Number of pins | 16 |
| Product marking | TDA51S-41HC |
| Tape &Reel | 1K/REEL |
| Input voltage range（Vdc） | 3.0~5.5 |
| communication rate（Mbps | 150 |
| Isolation withstand voltage | 5000VAC |
| channels | 4 |
| forward channel | 3 |
| back channel | 1 |
| working temperature | '-40~＋125℃ |
| Package | SOIC 16 |
| |
| |
| |
