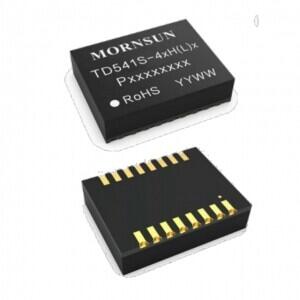

TD541S-4xH(L)x is a family of high-performance reinforced digital isolators with an integrated isolated DC-DC converter. TD541S-4xH(L)xeliminate the need for a separate, isolated power supply, which results in a small form factor, total isolation solution. The power supplyvoltageofTD541S-4xH(L)5 is 5V and its isolated power is 5V. The power supply voltage of TD541S-4xH(L)3 is 5V and its isolated power is 3.3V. TD541S-40H(L)x device has four forward and one reverse-direction channels. TD541S-41H(L)x device has three forward and one reverse-directionchannels.
TD541S-42H(L)x device has two forward and two reverse-direction channels. TD541S-43H(L)x device has one forwardandthreereverse-direction channels. TD541S-44H(L)x device has four reverse-direction channels. It has fail-safe mode option. If the input signal lost, defaultoutput is low for devices with L. If the input signal lost, default output is low for devices with H.
TD541S-44H5 | DFN package integrated isolated DC-DCconverter - TD541S-44H(L)x | ||||||
Part number | Package | Number of pins | Isolated supply voltage | Default output level | Product marking | Tape&Reel |
TD541S-40H5 | DFN | 16 | 5V | H | TD541S-40H5 | 300/REEL |
TD541S-40L5 | DFN | 16 | 5V | L | TD541S-40L5 | 300/REEL |
TD541S-41H5 | DFN | 16 | 5V | H | TD541S-41H5 | 300/REEL |
TD541S-41L5 | DFN | 16 | 5V | L | TD541S-41L5 | 300/REEL |
TD541S-42H5 | DFN | 16 | 5V | H | TD541S-42H5 | 300/REEL |
TD541S-42L5 | DFN | 16 | 5V | L | TD541S-42L5 | 300/REEL |
TD541S-43H5 | DFN | 16 | 5V | H | TD541S-43H5 | 300/REEL |
TD541S-43L5 | DFN | 16 | 5V | L | TD541S-43L5 | 300/REEL |
TD541S-44H5 | DFN | 16 | 5V | H | TD541S-44H5 | 300/REEL |
TD541S-44L5 | DFN | 16 | 5V | L | TD541S-44L5 | 300/REEL |
TD541S-40H3 | DFN | 16 | 3.3V | H | TD541S-40H3 | 300/REEL |
TD541S-40L3 | DFN | 16 | 3.3V | L | TD541S-40L3 | 300/REEL |
TD541S-41H3 | DFN | 16 | 3.3V | H | TD541S-41H3 | 300/REEL |
TD541S-41L3 | DFN | 16 | 3.3V | L | TD541S-41L3 | 300/REEL |
TD541S-42H3 | DFN | 16 | 3.3V | H | TD541S-42H3 | 300/REEL |
TD541S-42L3 | DFN | 16 | 3.3V | L | TD541S-42L3 | 300/REEL |
TD541S-43H3 | DFN | 16 | 3.3V | H | TD541S-43H3 | 300/REEL |
TD541S-43L3 | DFN | 16 | 3.3V | L | TD541S-43L3 | 300/REEL |
TD541S-44H3 | DFN | 16 | 3.3V | H | TD541S-44H3 | 300/REEL |
TD541S-44L3 | DFN | 16 | 3.3V | L | TD541S-44L3 | 300/REEL |
TD541S-44H5 | DFN package integrated isolated DC-DCconverter - TD541S-44H(L)x | |
Input voltage range (Vdc) | '4.75~5.25 |
communication rate Mbps | 150 |
Isolation withstand voltage | 5000VAC |
channels | 4 |
forward channel | 0 |
back channel | 4 |
working temperature | '-40~+125℃ |
Package | DFN 16 |
