TD541S-43H5

TD541S-43H5 - DFN package integrated isolated DC-DCconverter - TD541S-4xH(L)x

Resimler temsilidir Ürün özellikleri için lütfen ürün açıklamalarını kontrol ediniz

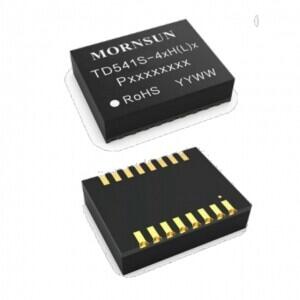

TD541S-43H5 - DFN package integrated isolated DC-DCconverter - TD541S-4xH(L)x - 1
ÜRETİCİ KODU : TD541S-43H5 KOPYALA
ÜRETİCİ : MORNSUN KOPYALA
PAKETLEME TİPİ : REEL

TD541S-43H5 Features

  • Ultra-small, ultra-thin, chip scale DNFpackage
  • Baud rate up to 150Mbps
  • Low communication delay
  • Integrate 5V efficiently power supply
  • High isolation to 5000VDC
  • High HBM: ±8kV
  • High CMTI: 75 kV/μs(typical)
  • Industrial operating ambient temperature range: -40℃ to +125℃

TD541S-43H5 Applications

  • Industrial automation system
  • Motor control
  • Medical equipment
  • Test and measurement
  • Isolated ADC, DAC

TD541S-43H5 Functional Description

TD541S-4xH(L)x is a family of high-performance reinforced digital isolators with an integrated isolated DC-DC converter. TD541S-4xH(L)xeliminate the need for a separate, isolated power supply, which results in a small form factor, total isolation solution. The power supplyvoltageofTD541S-4xH(L)5 is 5V and its isolated power is 5V. The power supply voltage of TD541S-4xH(L)3 is 5V and its isolated power is 3.3V. TD541S-40H(L)x device has four forward and one reverse-direction channels. TD541S-41H(L)x device has three forward and one reverse-directionchannels.

TD541S-42H(L)x device has two forward and two reverse-direction channels. TD541S-43H(L)x device has one forwardandthreereverse-direction channels. TD541S-44H(L)x device has four reverse-direction channels. It has fail-safe mode option. If the input signal lost, defaultoutput is low for devices with L. If the input signal lost, default output is low for devices with H.

TD541S-43H5 | DFN package integrated isolated DC-DCconverter - TD541S-43H(L)x
Part numberPackageNumber of pinsIsolated supply voltageDefault output levelProduct markingTape&Reel
TD541S-40H5DFN165VHTD541S-40H5300/REEL
TD541S-40L5DFN165VLTD541S-40L5300/REEL
TD541S-41H5DFN165VHTD541S-41H5300/REEL
TD541S-41L5DFN165VLTD541S-41L5300/REEL
TD541S-42H5DFN165VHTD541S-42H5300/REEL
TD541S-42L5DFN165VLTD541S-42L5300/REEL
TD541S-43H5DFN165VHTD541S-43H5300/REEL
TD541S-43L5DFN165VLTD541S-43L5300/REEL
TD541S-44H5DFN165VHTD541S-44H5300/REEL
TD541S-44L5DFN165VLTD541S-44L5300/REEL
TD541S-40H3DFN163.3VHTD541S-40H3300/REEL
TD541S-40L3DFN163.3VLTD541S-40L3300/REEL
TD541S-41H3DFN163.3VHTD541S-41H3300/REEL
TD541S-41L3DFN163.3VLTD541S-41L3300/REEL
TD541S-42H3DFN163.3VHTD541S-42H3300/REEL
TD541S-42L3DFN163.3VLTD541S-42L3300/REEL
TD541S-43H3DFN163.3VHTD541S-43H3300/REEL
TD541S-43L3DFN163.3VLTD541S-43L3300/REEL
TD541S-44H3DFN163.3VHTD541S-44H3300/REEL
TD541S-44L3DFN163.3VLTD541S-44L3300/REEL

TD541S-43H5 | DFN package integrated isolated DC-DCconverter - TD541S-43H(L)x
Input voltage range (Vdc)'4.75~5.25
communication rate Mbps150
Isolation withstand voltage5000VAC
channels4
forward channel1
back channel3
working temperature'-40~+125℃
PackageDFN 16
