AQV252G
Solid State DPST-NO (2 Form A) 6-DIP (0.300", 7.62mm)
| AQV252G - PANASONIC ELECTRIC WORKS - SSR RELAY DPST-NO 2.5A 0-60V | |
| Packaging | Tube |

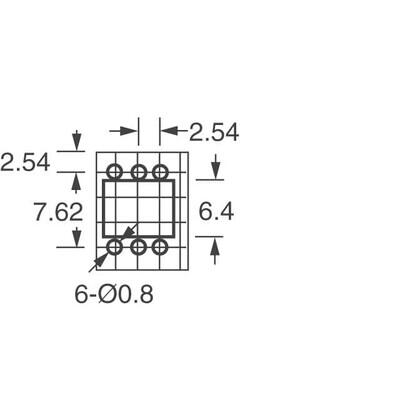

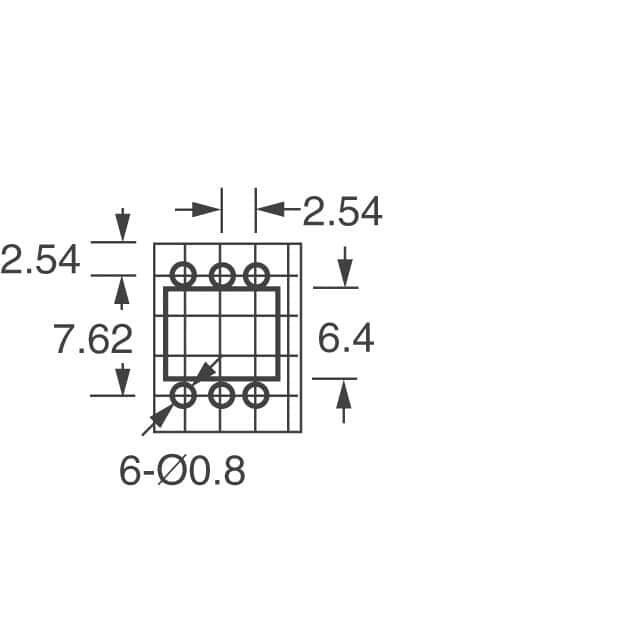

| Package / Case | 6-DIP (0.300", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.14VDC |

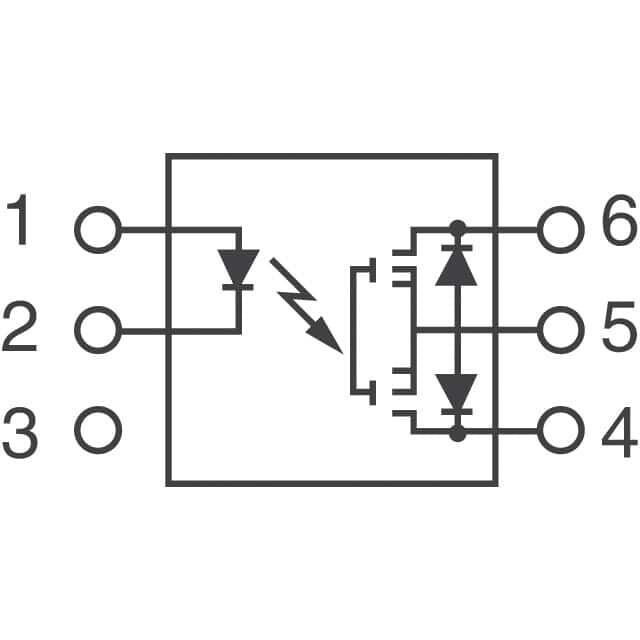

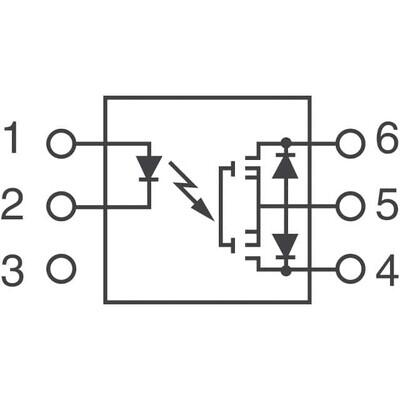

| Circuit | DPST-NO (2 Form A) |
| Termination Style | PC Pin |
| Load Current | 2.5 A |
| Supplier Device Package | 6-DIP |
| Voltage - Load | 0 V ~ 60 V |
| On-State Resistance (Max) | 120 mOhms |
