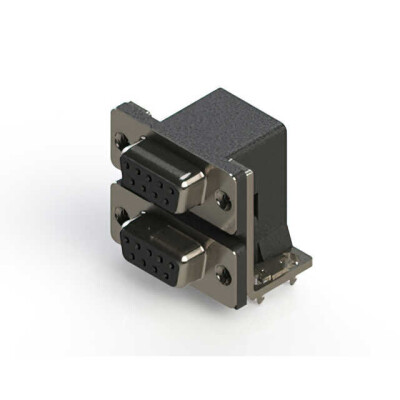

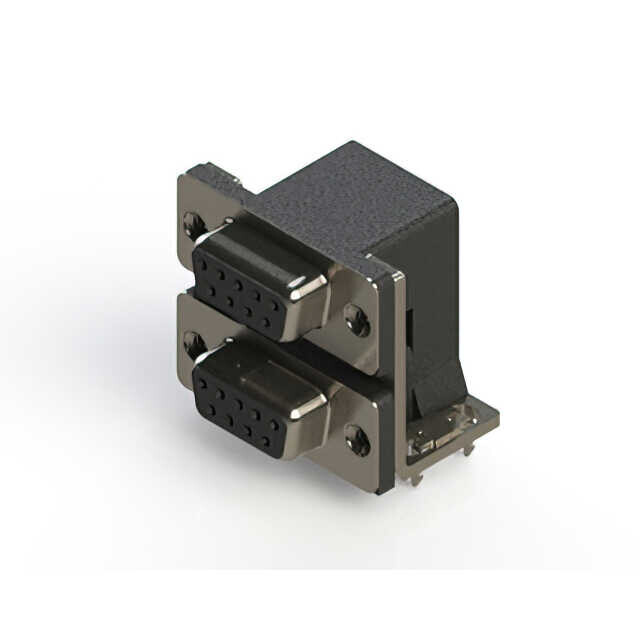

662-009-264-032 - EDAC INC. - CONN D-SUB RCPT 9POS R/A SLDR | |
Packaging | Bulk |
Features | Board Lock, Mounting Brackets, Shielded |
Connector Type | Receptacle, Female Sockets |
Contact Finish | Gold |
Current Rating (Amps) | 3A per Contact |
Mounting Type | Through Hole, Right Angle |
Number of Positions | 9, 9 |
Number of Rows | 2, 2 |
Contact Type | Signal |
Flange Feature | Housing/Shell (4-40) |
Termination | Solder |
Ingress Protection | - |
Connector Style | D-Sub - Stacked |
Contact Finish Thickness | Flash |
Material Flammability Rating | UL94 V-0 |
Shell Material, Finish | Steel, Nickel Plated |
Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
Backset Spacing | 0.318" (8.08mm) |
