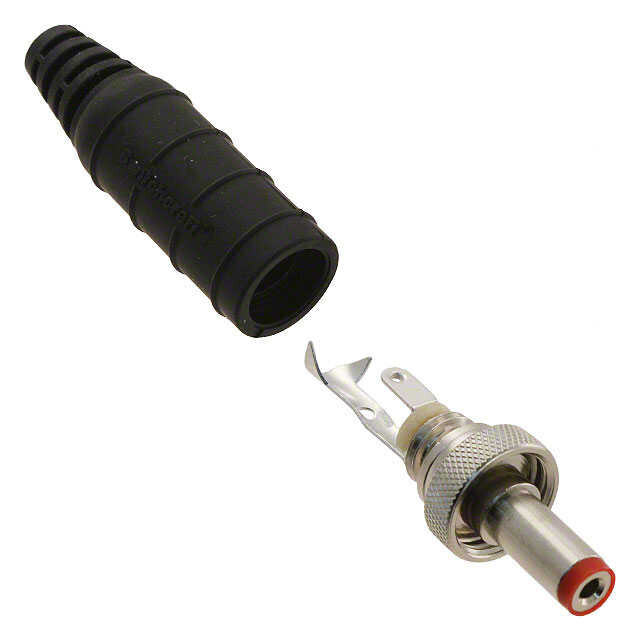

| 767KS17 - SWITCHCRAFT INC. - CONN PWR PLUG 2.1X5.5MM SOLDER | |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Cable Clamp, Thread Lock |
| Insulation Color | Red |
| Voltage - Rated | 30VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | IP68 |
| Material Flammability Rating | - |
| Operating Temperature | - |
