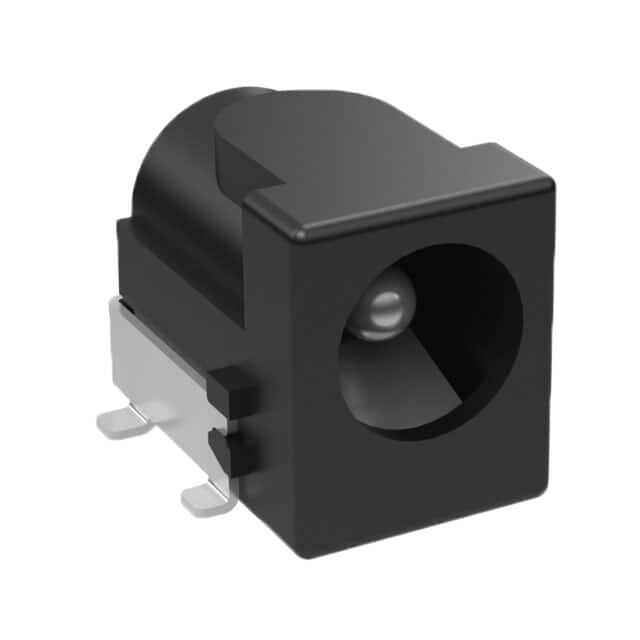

| 54-00165 - TENSILITY INTERNATIONAL CORP - CONN JACK R/A SMT 5.5X2.5MM | |
| Packaging | Cut Tape (CT) |
| Features | Board Guide |
| Voltage - Rated | 48V |
| Connector Type | Jack |
| Gender | Male |
| Mounting Type | Surface Mount, Right Angle |
| Shielding | Unshielded |
| Operating Temperature | -20°C ~ 70°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Insulation Color | - |
| Actual Diameter | 0.098" (2.50mm ID), 0.252" (6.40mm OD) |
| Mating Length/Depth | - |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Current Rating (Amps) | 6.5 A |
