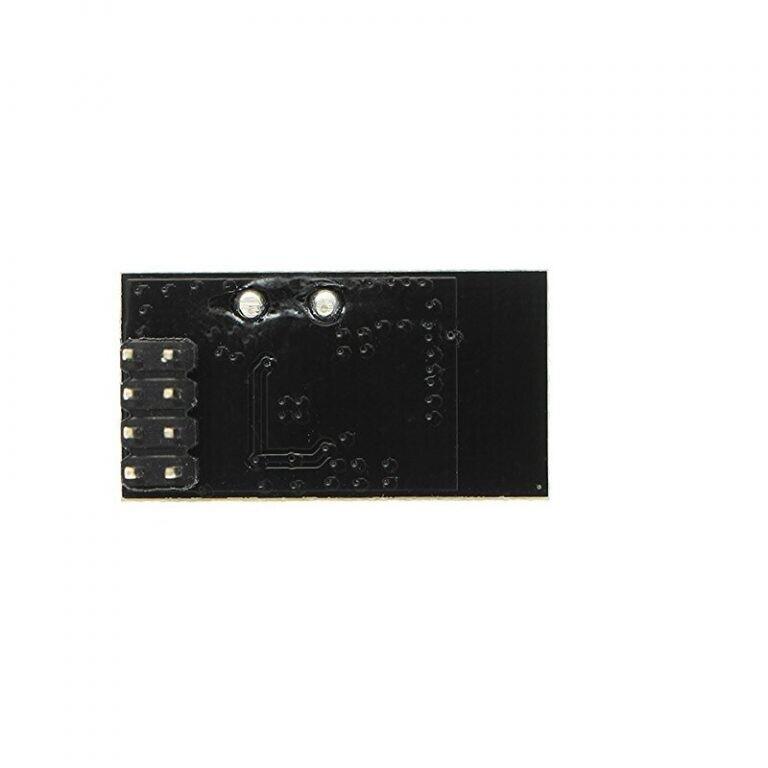

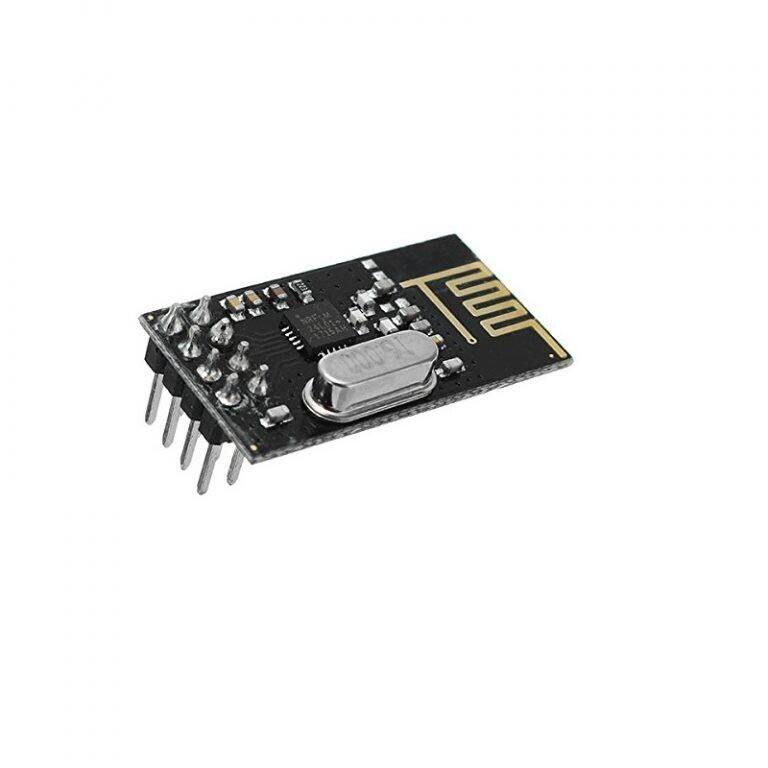

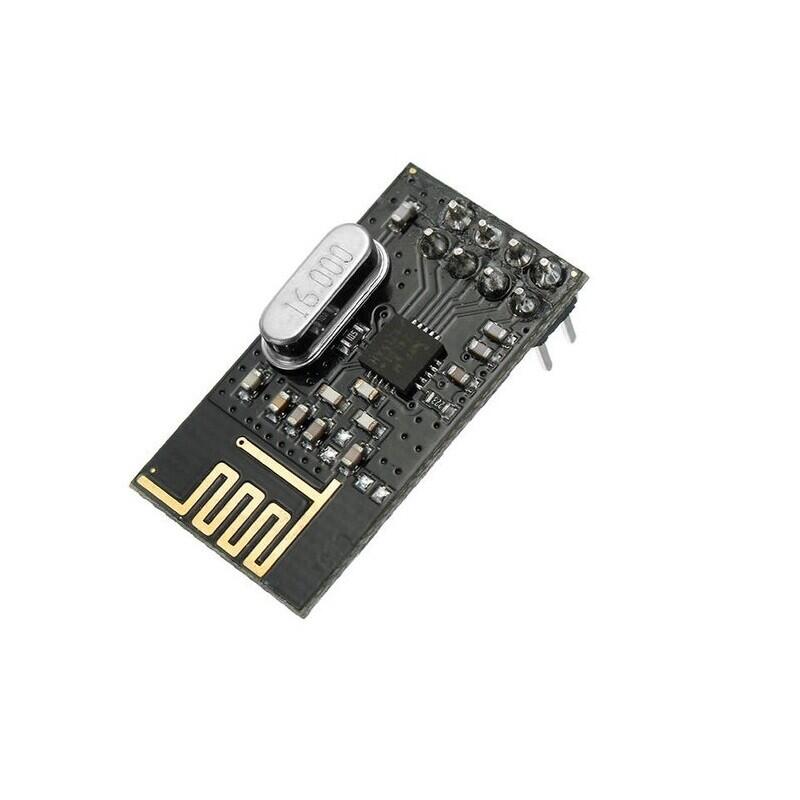

Ai Thinker NF-01-S Wireless Transceiver is a 100mW power 2.4G wireless module, high-altitude rate (up to 2Mbps), using SPI interface, send and receive in one pure hardware module; high stability, cost performance, Volume, use of all-industry components. NF-01-S can be widely used in a variety of networking occasions, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low power consumption network of wireless sensor networks, is the ideal solution of Internet of Things application.
| NF-01-S 2.4G Modül - AI Thinker | |
| Module Model | NF-01-S |
| Package | DIP-8 |
| Frequency Range | 2400MHz~2525MHz |
| Max Transmitting Power | 7±1 dBm |
| Power Supply | 1.9~3.6V, Typical 3.3V |
| Antenna | Onboard PCB antenna, gain 2dBi |
| Receiving sensitivity | -96dBm@250kbps |
| Communication Interface | SPI (The maximum rate of up to 10Mbps) |
| Operating temperature | -20 ℃ ~ 85 ℃ |
| Average current | Emission current: 25mA(7dBm) Receive current: 15mA (2Mbps) Shutdown: current 1.0uA(Shutdown Mode) |
| Length (mm) | 28.6 |
| Width (mm) | 15.3 |
| Height (mm) | 3.2 mm |
| Weight (gm) | 3 |
