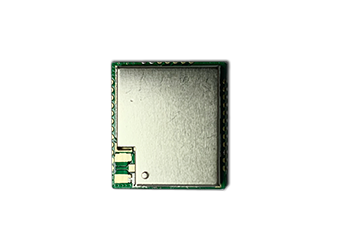

RFM6601W-868S2 LORA Transceiver Modül Genel Bakış
The RFM6601 module includes a general LoRa wireless communication SoC, integrated with a RF transceiver and a 32-bit RISC MCU. The MCU uses ARM Cortex M4, with 48 MHz operation frequency. The RF Transceiver has continuous frequency coverage from 150 MHz to 960 MHz. The RFM6601 Module provides ultra-long range and ultra-low power communication for LoRa application. RFM6601 can achieve a high sensitivity to -138 dBm and the maximum transmit power is up to +22 dBm. This makes the module suitable to be used in long range LoRa and have high efficiency.
RFM6601W-868S2 LORA Transceiver Modül Teknik Özellikler
- Working Voltage: 1.7V - 3.7V
- Working Frequency: 433.92 MHz (for China), 470 MHz (for China), 868 MHz (for Europe),
- 915 MHz (for USA/Canada)
- Receiving Sensitivity: -138 dBm @SF=12, BW=125KHz
- Tx Current: 108mA @+22dbm, 433.92 MHz (for China)
- Rx Current: 10mA @433.92 MHz (for China)
RFM6601W-868S2 LORA Transceiver Modül Uygulama Alanları
- Smart meters
- Supply chain and logistics
- Building automation
- Agricultural sensors
- Smart cities
- Retail store sensors
- Asset tracking
- Street lights
- Parking sensors
- Environmental sensors
- Healthcare
- Safety and security sensors
- Remote control applications
RFM6601W-868S2 LORA Transceiver Modül hakkında daha fazla teknik özellik için aşağıdaki butondan datasheet'e ulaşabilirsiniz.
