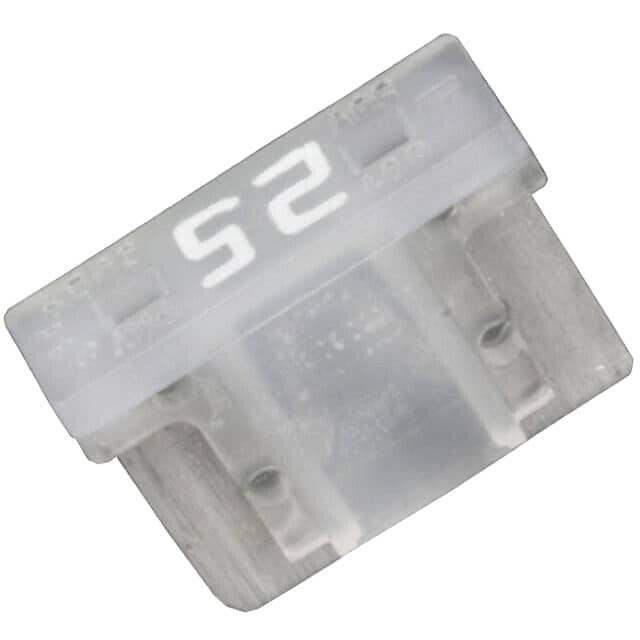

| 0891025.NXS - LITTELFUSE INC. - FUSE AUTO 25A 58VDC BLADE MINI | |
| Packaging | Bulk |
| Package / Case | Blade, Miniature (Low Profile) |
| Color | Clear |

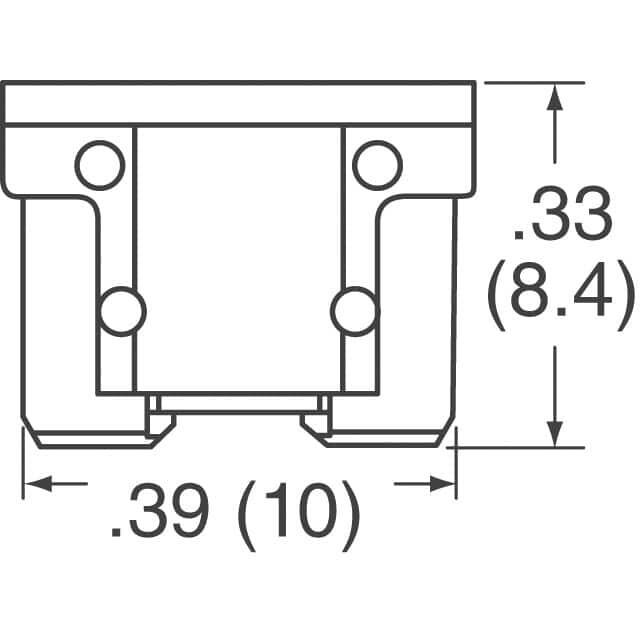

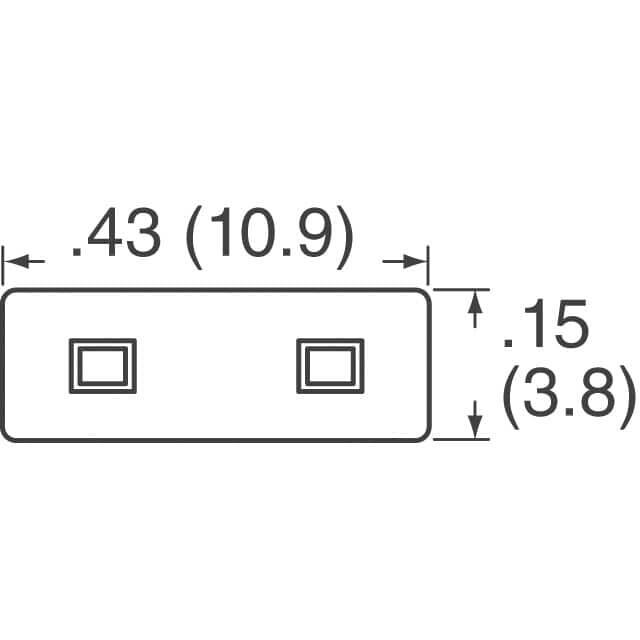

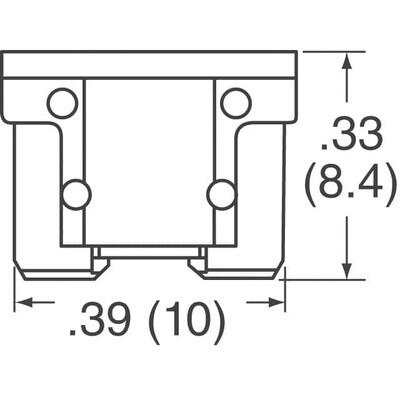

| Size / Dimension | 0.429" L x 0.150" W x 0.299" H (10.90mm x 3.80mm x 7.60mm) |
| Fuse Type | Automotive |
| Mounting Type | Holder |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | - |
| Breaking Capacity @ Rated Voltage | 1kA |
| Current Rating (Amps) | 25 A |
| Voltage Rating - DC | 58 V |
| Melting I²t | 613 |
