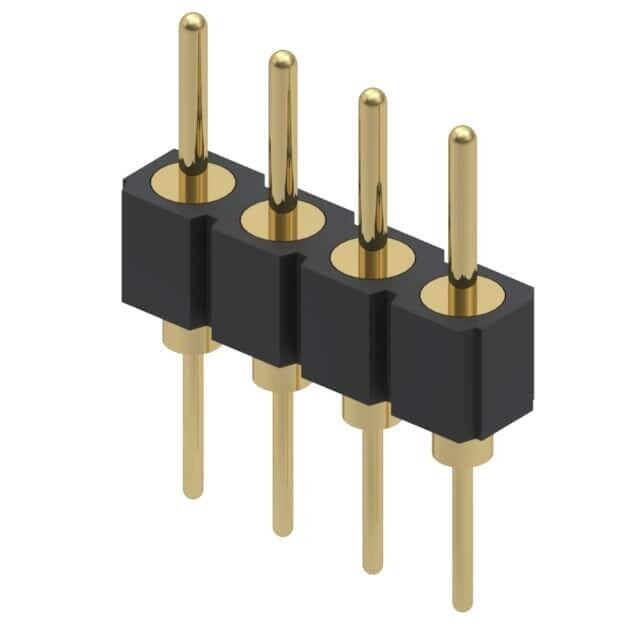

350-10-104-00-006000 - MILL-MAX MANUFACTURING CORP. - CONN HEADER VERT 4POS 2.54MM | |
Packaging | Bulk |
Features | - |
Connector Type | Header |
Voltage Rating | - |
Current Rating (Amps) | - |
Mounting Type | Through Hole |
Number of Positions | 4 |
Number of Rows | 1 |
Style | Board to Board |
Operating Temperature | - |
Contact Type | Male Pin |
Fastening Type | Push-Pull |
Number of Positions Loaded | All |
Termination | Solder |
Ingress Protection | - |
Material Flammability Rating | - |
Contact Material | Brass Alloy |
Insulation Color | Black |
Pitch - Mating | 0.100" (2.54mm) |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Gold |
Contact Shape | Circular |
Contact Length - Post | 0.110" (2.79mm) |
Insulation Height | 0.110" (2.79mm) |
Shrouding | Unshrouded |
Overall Contact Length | 0.394" (10.00mm) |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
Row Spacing - Mating | - |
Contact Length - Mating | 0.142" (3.61mm) |
