113030019

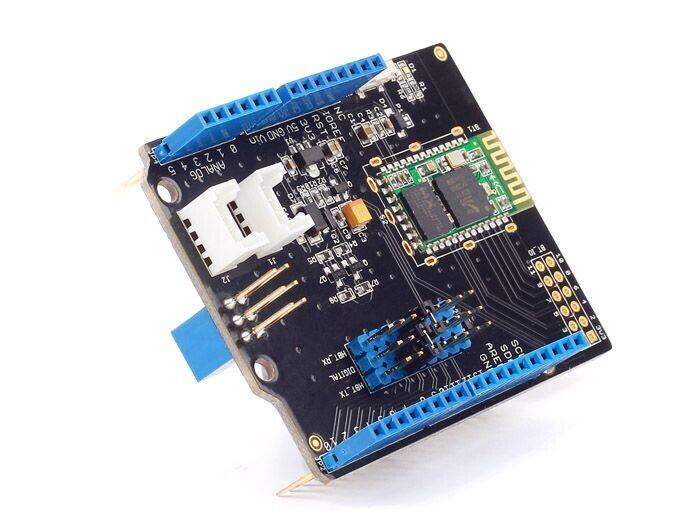

Blueseeed Shield V2 - Bluetooth RF Arduino Shield (kablosuz seri haberleşme)
Blueseeed Shield - Bluetooth RF Arduino Shield V2 Genel Bakış
The Blueseeed TH Shield V2 (HM01) integrates a Serial Bluetooth module. It can be easily used with Arduino/Seeedstudio for transparent wireless serial communication.
Blueseeed Shield - Bluetooth RF Arduino Shield V2 Teknik Özellikler
- Seeeduino/Arduino compatible
- Up to10m communication distance in house without obstacle
- UART interface (TTL) with programmable baud rate
- A full set of configuration commands
- On board PCB Antenna
- Based on HM-01 Bluetooth module
Dimensions: 100mm x65mm x30mm
Weight: G.W 40g
Battery: Exclude
Power supply Voltage: 3.3V
Baudrate: 9600, 19200, 38400, 57600, 115200, 230400, 460800
Default Baud rate: 9600, Data bits: 8, Stop bit: 1, Parity: No parity
Default: PINCODE ”1234”
Bluetooth version: v2.1+EDR
| 113030019 - SEEED TECHNOLOGY CO., LTD - BLUETOOTH SHIELD V2 | |
| Platform | Arduino |
| Type | RF |
| Function | Bluetooth |
| Utilized IC / Part | - |
| Contents | Board(s) |
