A000110

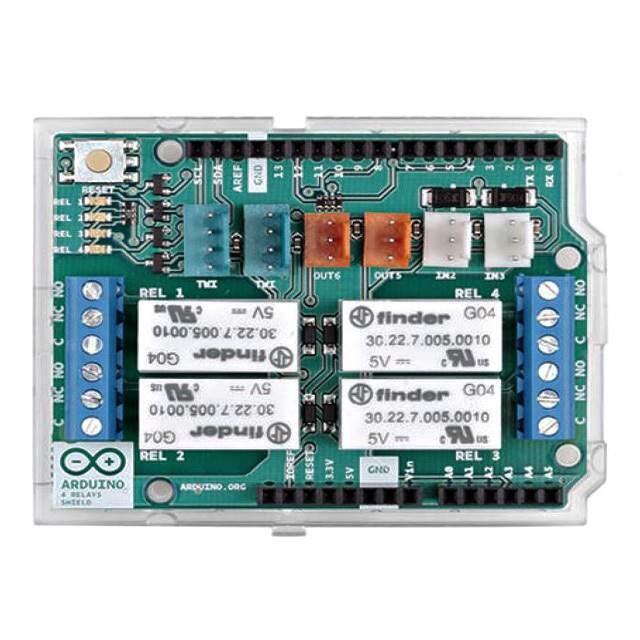

Arduino 4 Relays Shield Orijinal
Arduino 4 Relays Shield Genel Bakış
The Arduino 4 Relays Shield is a solution for driving high power loads that cannot be controlled by Arduino's digital IOs, due to the current and voltage limits of the controller. The Shield features four relays, each relay provides 2 pole changeover contacts (NO and NC); in order to increase the current limit of each output the 2 changeover contacts have been put in parallel. Four LEDs indicate the on/off state of each relay.
Arduino 4 Relays Shield Teknik Özellikler
Thinker Kit interface: 2x TWI, 2x OUT, 2x IN
Interfaces with Arduino Board: DIO
Relays: 4 (60W)
Operating Voltage: 5 V
Current needs: 140 mA (with all releays on, about 35 mA each)
PCB Size: 53 x 68.5 mm
Weight: 0.044 Kg
Product Code: A000110
| Özellik | Değer |
| Part Status | Active |
| Platform | Arduino |
| Type | Relay |
| Function | Electromechanical |
| Utilized IC / Part | - |
| Contents | Board(s) |
