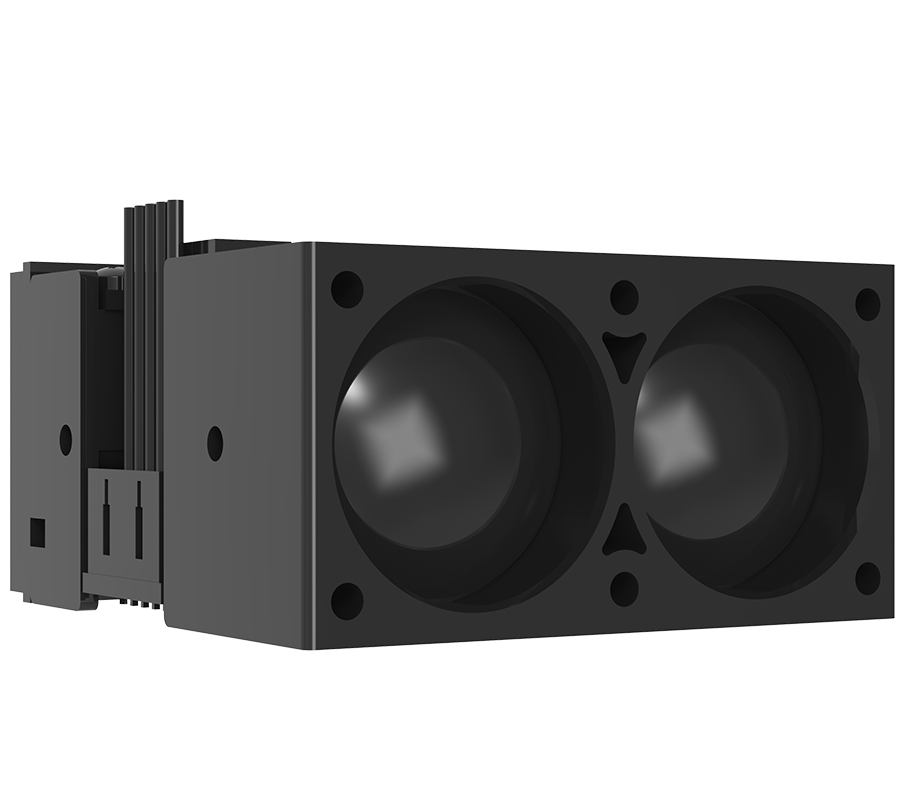

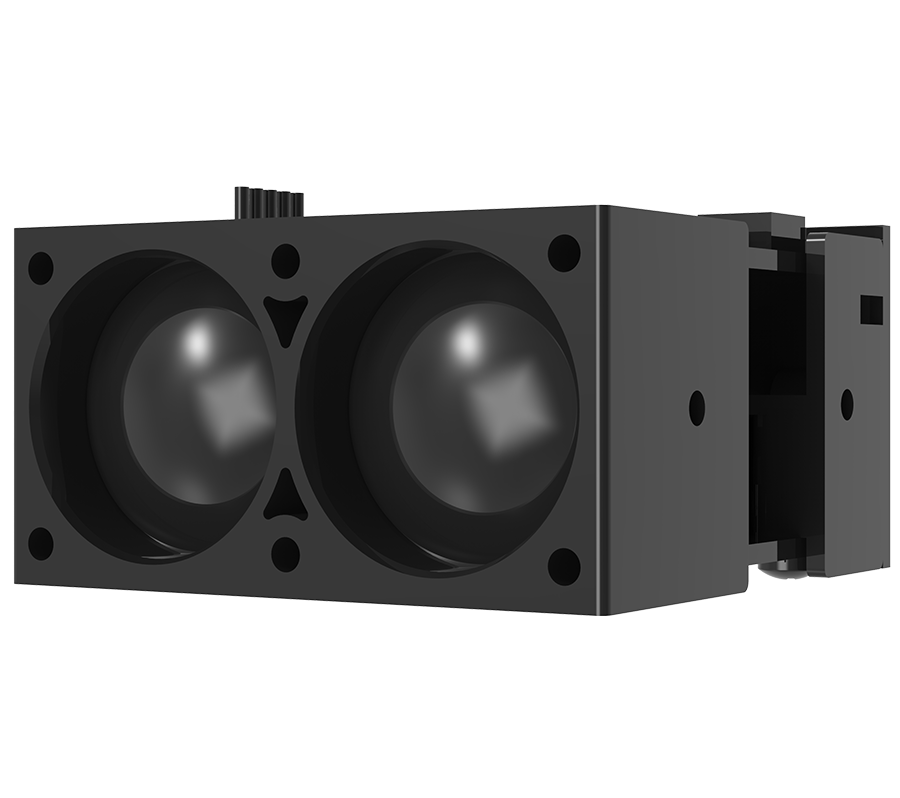

The TFA1500-L is a kilometer-level high-frequency single-point LiDAR with a range of 1500 m and a maximum frequency of 800 Hz, enabling precise and rapid measurement and positioning of distant targets. It is used for inspection drones, drone payloads, and engineering surveying for distance maintenance and auxiliary positioning functions.
800Hz (Max.) High-frequency
The TFA1500-L provides position data updates at a minimum of 60 Hz for high-speed moving targets, while still maintaining its range, and can achieve up to 800 Hz at close distances.
| Benewake TFA1500-L | Kilometer-level Long Range LiDAR | |
| Performance Parameters | |
| Model | TFA1500-L |
| Ranging capability ① | 0.5 ~ 1500 m |
| Precision | ± 0.5m(≤ 80m)，± 1.0m (> 80m) |
| Distance resolution | 1 cm |
| Default frame rate | 60 ~ 800Hz (adaptive) |
| Beam divergence | ~ 6 mrad |
| False detection rate | ≤ 1% |
| Target discrimination | ≤ 30m |
| Central wavelength | 905± 5 nm |
| Mechanical and Electrical Parameters | |
| Size（L×W×H） | ≤ 25 mm × 26 mm × 13 mm |
| Weight | 11± 0.5 g |
| Operating temperature | -20 ~ +60 ℃ |
| Storage temperature | -45 ～＋70 ℃ |
| Supply voltage | DC 3.0 ～5.0 V |
| Shock resistance | 1000 g, 20 ms |
| Vibration resistance | 5 to 50 to 5 Hz, 1 oct/min, 2.5 g |
| Operating power consumption | ≤ 1.8W |
| Standby Power Consumption | ≤ 0.8W |
