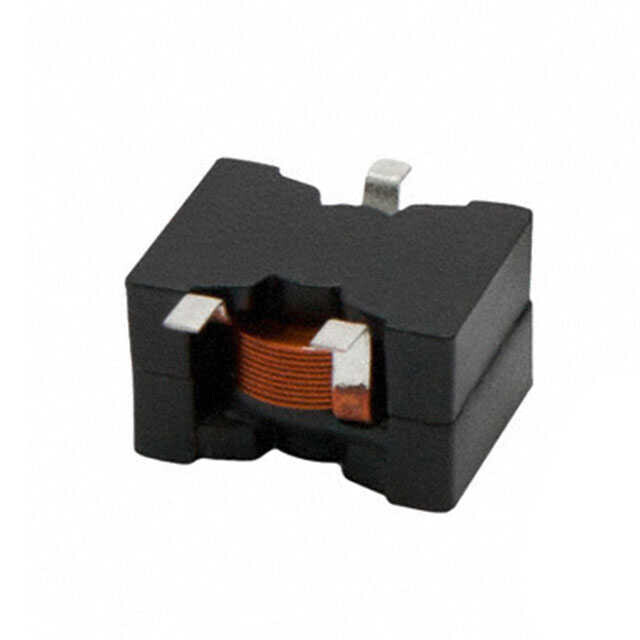

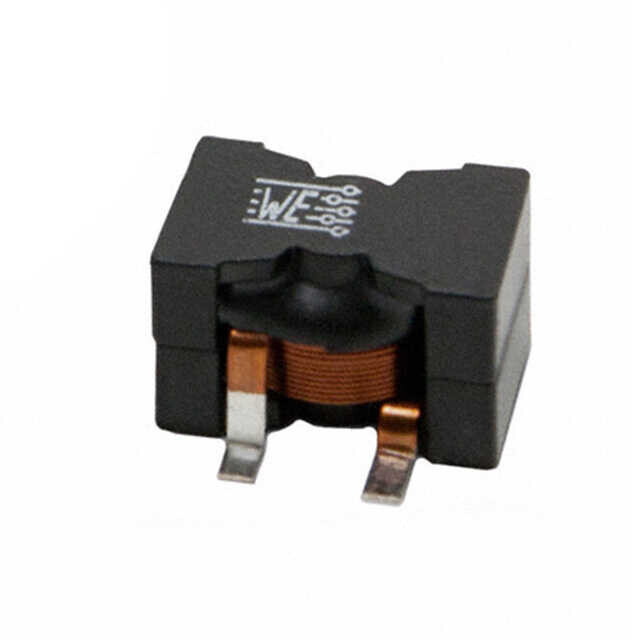

7443630700
7 µH Shielded Drum Core, Wirewound Inductor 21 A 5.61mOhm Nonstandard
| 7443630700 - WÜRTH ELEKTRONIK - FIXED IND 7UH 21A 5.61 MOHM SMD | |
| Packaging | Cut Tape (CT) |
| Tolerance | ±15% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.846" L x 0.827" W (21.50mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 5.61mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 18MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 30A |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Inductance | 7 µH |
| Current Rating (Amps) | 21 A |
