7447714680

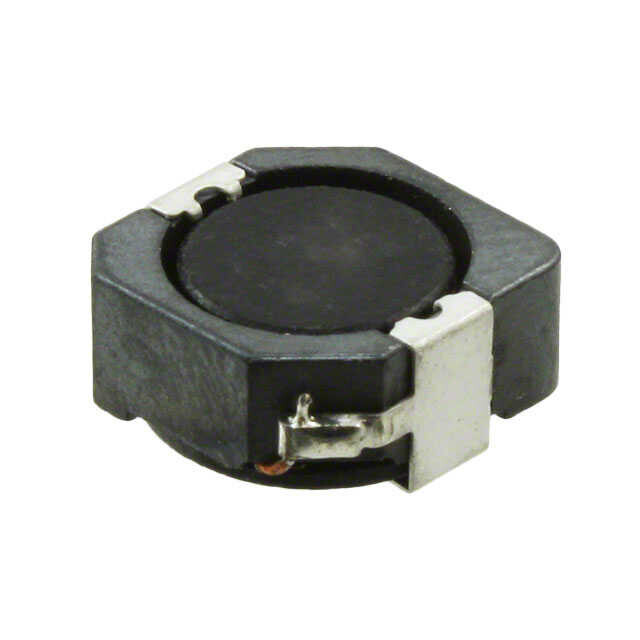

68 µH Shielded Drum Core, Wirewound Inductor 1.9 A 132mOhm Max Nonstandard
| 7447714680 - WÜRTH ELEKTRONIK - FIXED IND 68UH 1.9A 132 MOHM SMD | |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 132mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 2.2A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Inductance | 68 µH |
| Current Rating (Amps) | 1.9 A |
