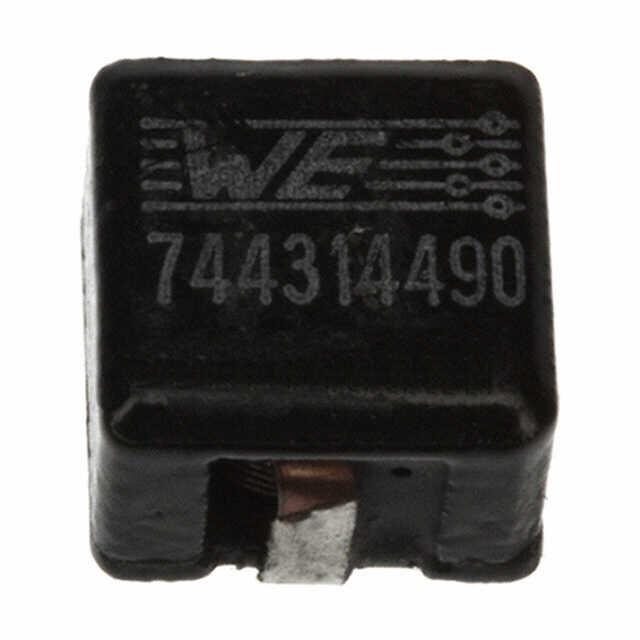

744314490
4.9 µH Shielded Wirewound Inductor 6.5 A 14.5mOhm Nonstandard
| 744314490 - WÜRTH ELEKTRONIK - FIXED IND 4.9UH 6.5A 14.5MOHM SM | |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 14.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 56MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 6.5A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 7050 |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Inductance | 4.9 µH |
| Current Rating (Amps) | 6.5 A |
