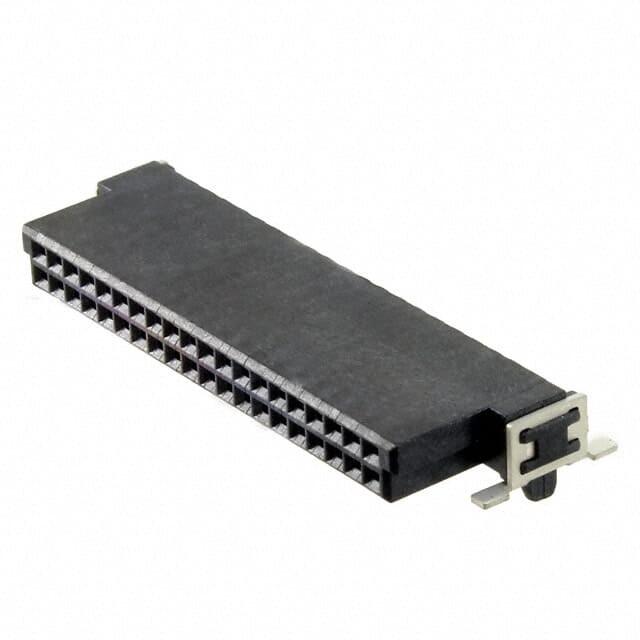

15250402601000 - HARTING - CONN RCPT 40POS 0.05 SMD R/A | |
Packaging | Cut Tape (CT) |
Features | Board Guide, Solder Retention |
Connector Type | Receptacle |
Voltage Rating | - |
Current Rating (Amps) | - |
Mounting Type | Surface Mount, Right Angle |
Number of Positions | 40 |
Style | Board to Board or Cable |
Operating Temperature | -55°C ~ 125°C |
Contact Type | Female Socket |
Fastening Type | Push-Pull |
Number of Positions Loaded | All |
Termination | Solder |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - |
Insulation Color | Black |
Pitch - Mating | 0.050" (1.27mm) |
Contact Finish - Mating | - |
Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin |
Contact Length - Post | - |
Insulation Height | 0.120" (3.05mm) |
Row Spacing - Mating | 0.050" (1.27mm) |
Number of Rows | 2 |
