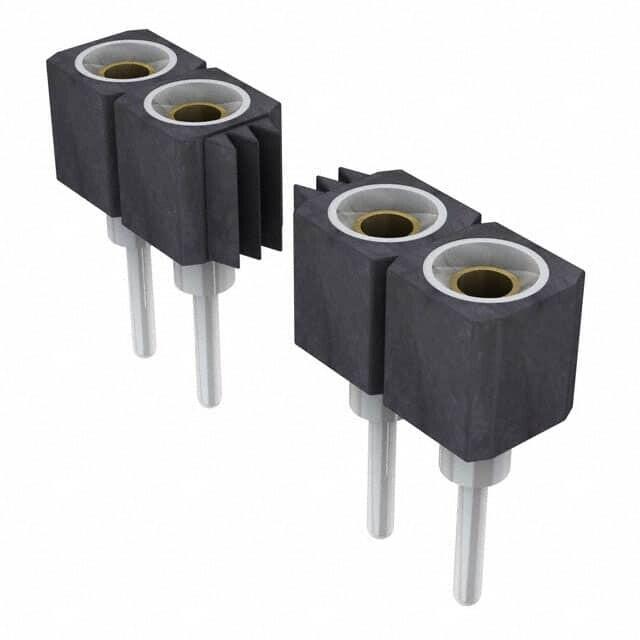

310-43-104-41-001000 - MILL-MAX MANUFACTURING CORP. - CONN RCPT 4POS 0.1 GOLD PCB | |
Packaging | Bulk |
Features | - |
Connector Type | Receptacle |
Voltage Rating | 100V, 150VDC |
Current Rating (Amps) | 3A |
Mounting Type | Through Hole |
Number of Positions | 4 |
Style | Board to Board |
Operating Temperature | -55°C ~ 125°C |
Contact Type | Female Socket |
Fastening Type | Push-Pull |
Number of Positions Loaded | All |
Termination | Solder |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - |
Insulation Color | Black |

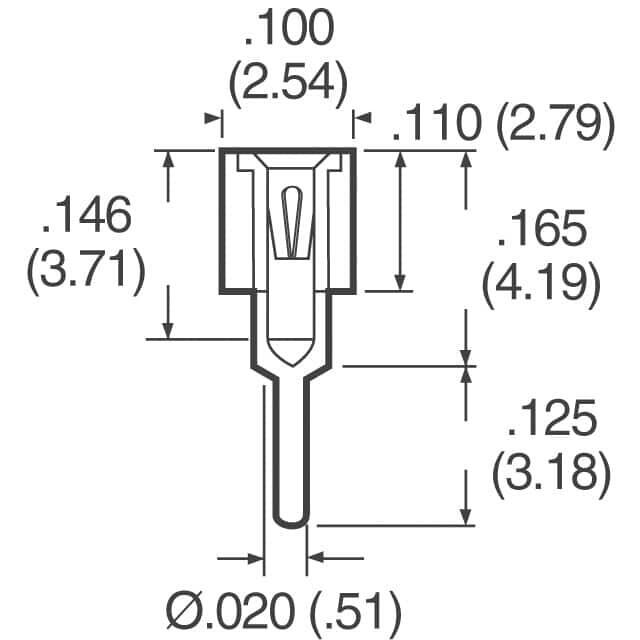

Pitch - Mating | 0.100" (2.54mm) |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin |
Contact Length - Post | 0.125" (3.18mm) |
Insulation Height | 0.110" (2.79mm) |
Row Spacing - Mating | - |
Number of Rows | 1 |
